How to Replace the GFCI Plug on Your Active 2.0 Pressure Washer

How to Replace the GFCI Plug on Your Active 2.0 Pressure Washer

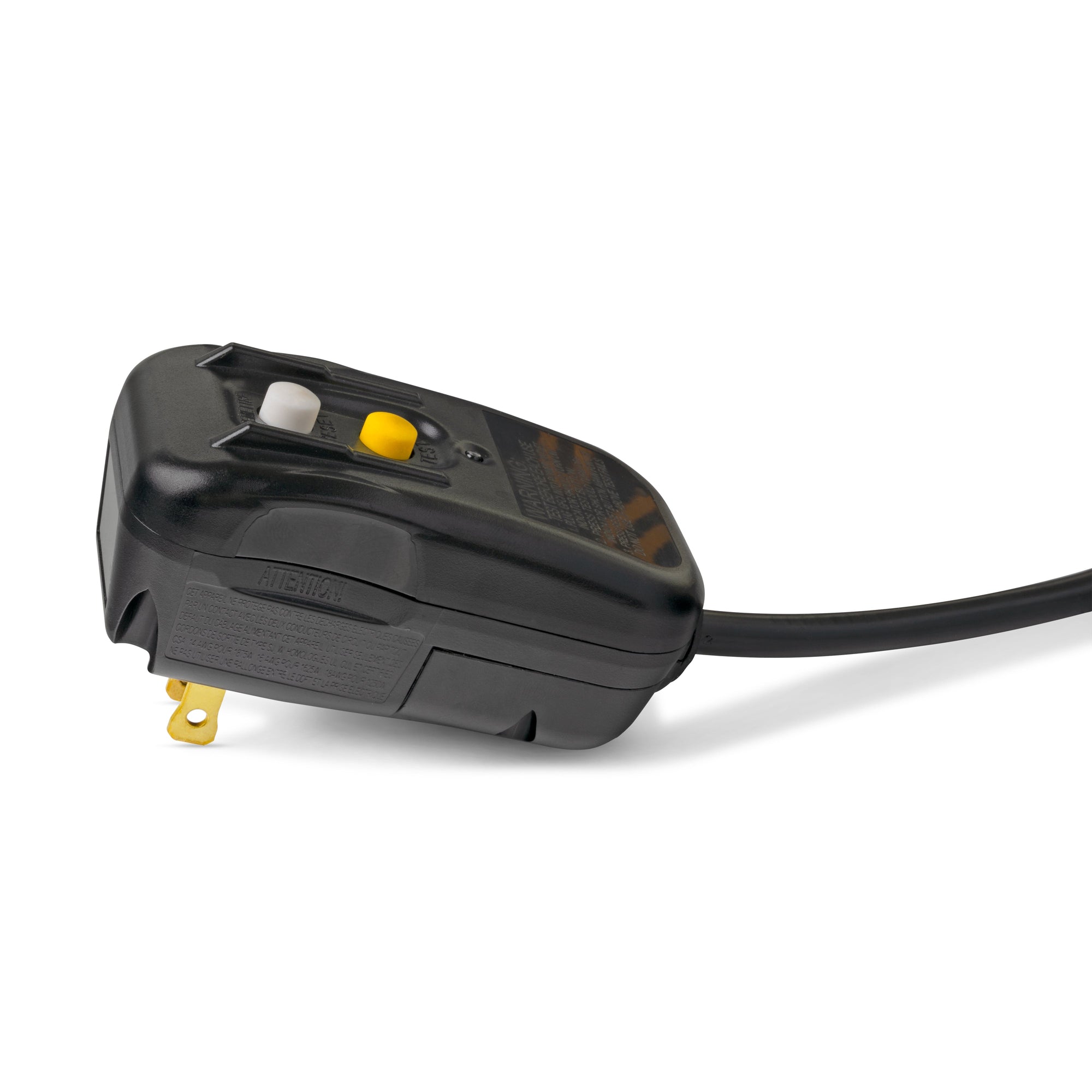

Welcome to the Active 2.0 Support Blog Series. In today’s guide, we’ll be walking you through the process of replacing the Ground Fault Circuit Interrupter (GFCI) plug on your Active 2.0 pressure washer. The GFCI plug is an essential safety component that grounds the washer and protects users from electrical shock while operating a water-based electrical device.

Why Is the GFCI Plug Important?

The GFCI plug plays a vital role in preventing electrical shocks, making it crucial for the safety of your pressure washer. When you power on your unit, it’s important to plug in the GFCI and press the TEST and RESET buttons to confirm that it’s functioning correctly.

However, if the GFCI plug becomes defective, you may encounter the following issues:

  • The light on the GFCI doesn’t turn ON when switched ON.
  • The light is ON, but you hear a buzzing sound or feel the plug heating up.

If you experience these defects, it’s time to replace the GFCI plug.

What You’ll Need

  • Phillips screwdriver
  • New GFCI plug (available from Active Products or your local hardware store)

Step-by-Step GFCI Plug Replacement

Follow these simple steps to replace the GFCI plug on your Active 2.0 pressure washer:

Step 1: Remove the Plastic Casing

Using your Phillips screwdriver, remove the four screws from the plastic casing that protects the GFCI plug and set it aside.

Step 2: Disconnect the Cable and Wires

Next, remove the internal four screws to release the cable and connecting wires from the GFCI plug. Be careful to note the positions of the cables for easy reinstallation.

Step 3: Install the New GFCI Plug

Get the new GFCI plug and place the cable receptacles securely at the terminal points. Make sure the wires are snug inside the terminals, then screw down the two screws to hold them firmly in place.

Step 4: Secure the Cable

Position the cable correctly and screw down the remaining two internal screws to ensure the connection is tight and secure.

Step 5: Reassemble the Plastic Casing

Place the plastic cover back over the GFCI plug and tighten the four external screws to complete the installation.

Conclusion

And there you have it! By following these simple steps, you can easily replace the GFCI plug on your Active 2.0 pressure washer, ensuring it remains safe to use. If you encounter any difficulties or have further questions, feel free to reach out to us at support@activeproducts.com. We’re here to help!

Thank you for following along. Be sure to check out our other support videos and articles to keep your Active 2.0 running in top condition.
