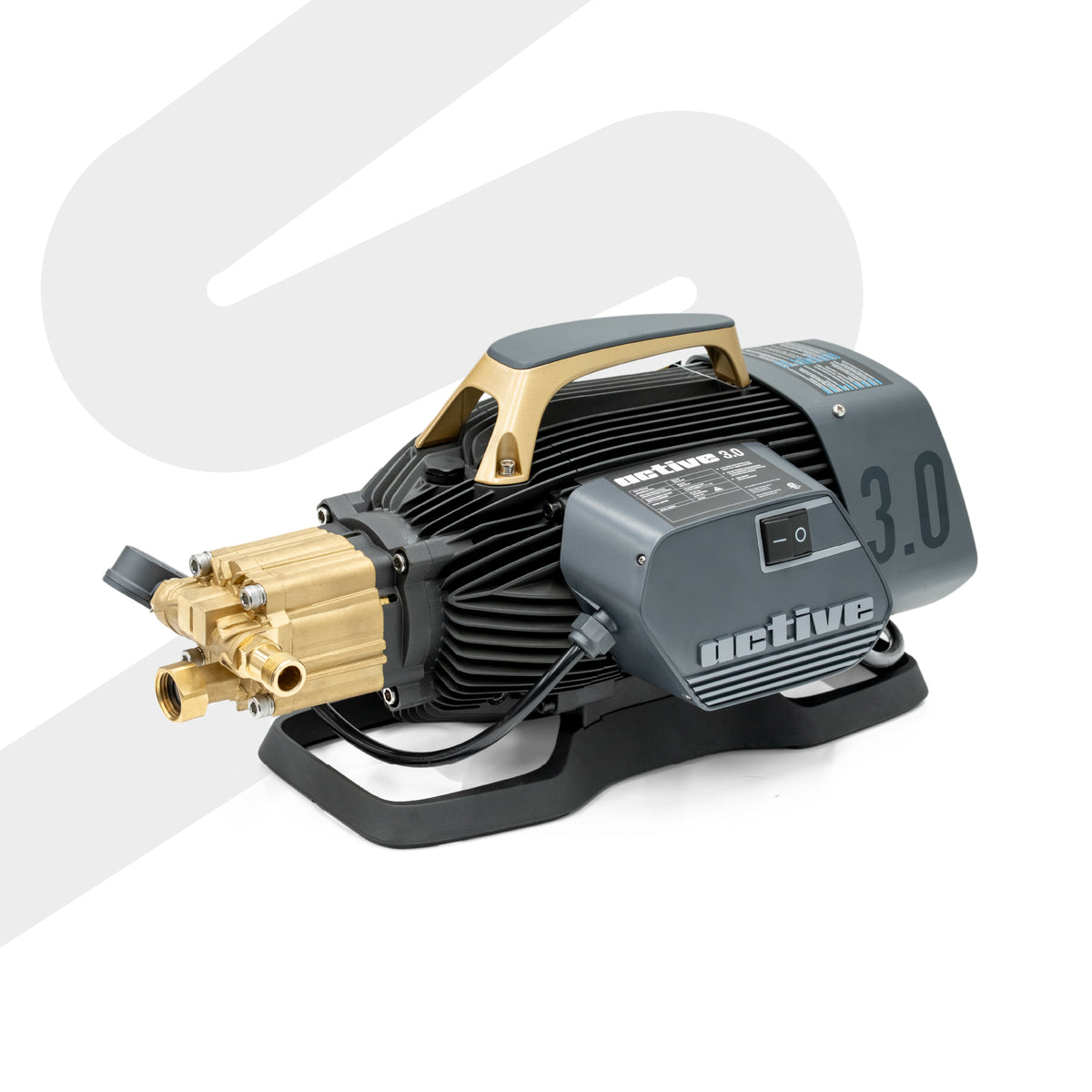

Active™ 3.0 Electric Pressure Washer (20 Amps | 110-120V/ 60 Hz)

The Active 3.0 is designed to run on a 20A circuit and comes with a plug required to plug into a dedicated 20A circuit rated at 120V/60Hz. We discourage the use of extension cords, but if one must be used, we recommend using an extension cord not longer than 50’ and it must be rated for 12AWG. When using foam cannons, we'll be providing a 1.65 mm nozzle with the 3.0, so users can work with their aftermarket foam cannons while maintaining the current draw under 18A.

The pressure washer inlet size is ¾” with 11.5 TPI threads (this is the standard North American Garden Hose connector size). The outlet of the pressure washer is M22-14mm. When it comes to using accessories or quick connections, ensure the spec matches the pump requirements.

The Active 3.0 comes with a 6.3 orifice size. This is done to ensure the machine outputs the best balance of pressure and flow under 18A current draw. If you are to change the nozzles for varying applications, we recommend the use of nozzles between 6.3 to 7.0.

The recommended foam cannon orifice size is a 1.65mm orifice to ensure the current draw is under 18A during normal foaming operations. We'll be providing a 1.65mm nozzle with the 3.0, so users can work with their aftermarket foam cannons while maintaining current draw below 18A.

You can use any aftermarket hose with the Active 2.3 as long as it is compatible with the M22-14mm outlet adapter and has a minimum internal diameter of 5/16”. We do not recommend the use of ¼” hoses with the Active 3.0. The preferred hose type and length is a steel braided rubber hose(5/16” or bigger) under 100 ft. in length. Non-steel braided hoses may expand under pressure and prevent the pressure washer from reaching its peak pressure (continuous running).

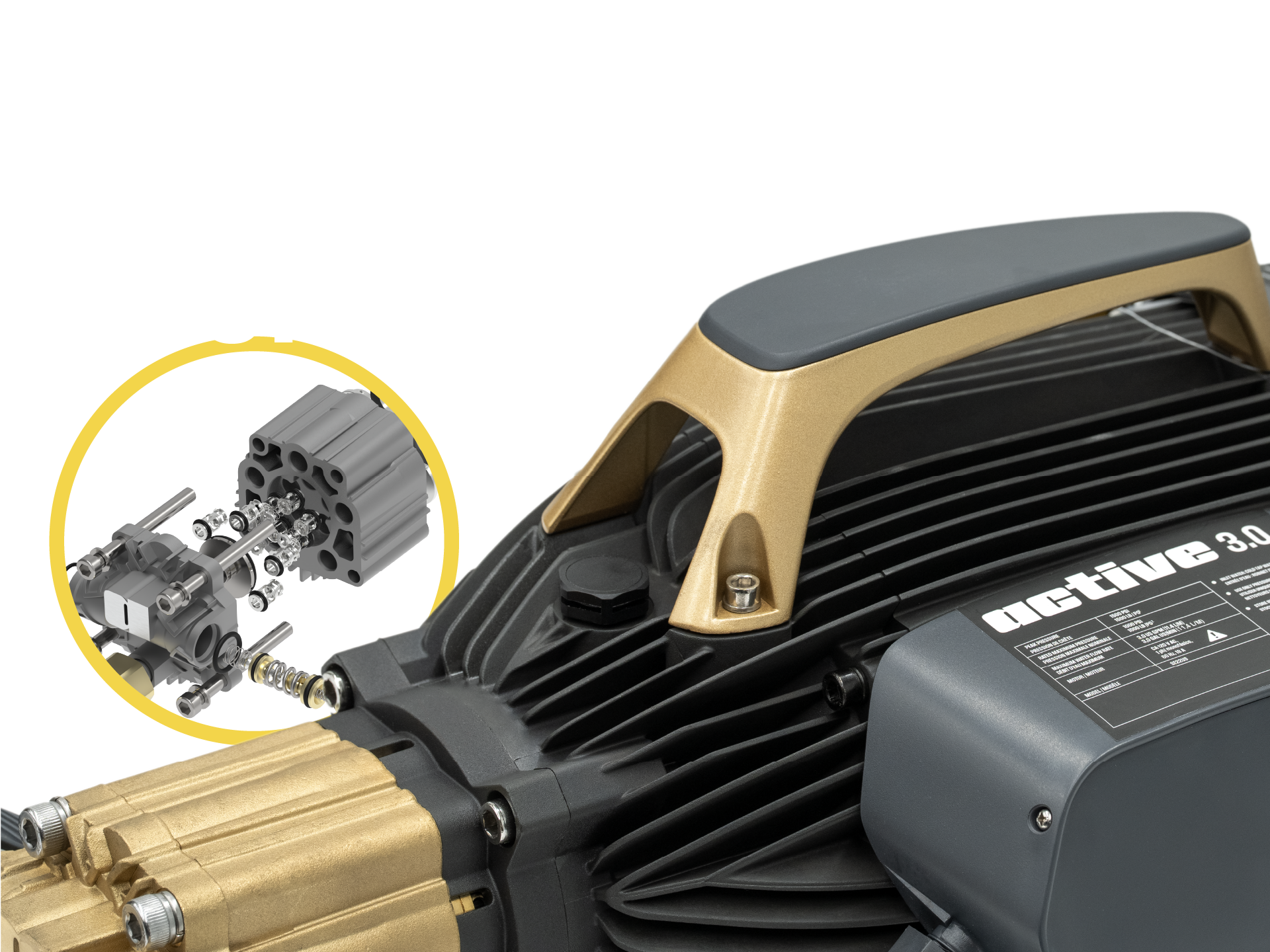

The Active 3.0 requires user care and maintenance for prolonged use. When receiving the unit, please ensure to swap the shipping plug with the ventilation cap. Ensure you use 85W-90 oil. The oil change needs to be done after 25 hours of use and every 100 hours or 6 months thereafter (whichever comes first).

This pressure washer comes with a 2-year residential warranty and 1-year commercial warranty (read product manual for more details). This product requires registration prior to warranty support on our product registration portal. Ensure you have your purchase proof, purchase store, order ID and serial number for registration.

The first step to follow is to read your product manual for troubleshooting. We will soon be providing videos on product maintenance, upkeep and troubleshooting, so this will be an additional resource as a troubleshooting guide. If product troubleshooting fails, please ensure you email us at support@activeproducts.com for agent support. Make sure to register your product prior to contacting us.
