Welcome to the Active 2.0 Support Video Series. In today’s guide, we will show you how to replace the power switch on your Active 2.0 pressure washer pump. If your unit is not powering on, this is a likely symptom of power switch failure. Let’s go through the steps to fix this issue.

What You'll Need

  • Phillips screwdriver (size X)
  • Small screwdriver
  • Replacement power switch

Step-by-Step Power Switch Replacement

Follow these steps to replace the power switch in your Active 2.0 pressure washer:

Step 1: Remove the Pump Body Screws

Using a size X Phillips screwdriver, remove the 9 screws from the pump body. Keep the screws in a secure place for reinstallation.

Step 2: Remove the Plastic Casing

Carefully remove the plastic casing from the pressure washer and set it aside for later reassembly.

Step 3: Loosen the Switch Box Screws

Locate the 2 screws holding down the switch box, then loosen and remove the pump and motor construction from the unit.

Step 4: Access the Switch Box Terminals

Using a small flathead screwdriver, open the switch box covering to access the ON/OFF switch terminals inside.

Step 5: Remove the Terminals

Disconnect all the terminals from the ON/OFF switch to prepare for the replacement.

Step 6: Remove the Old Power Switch

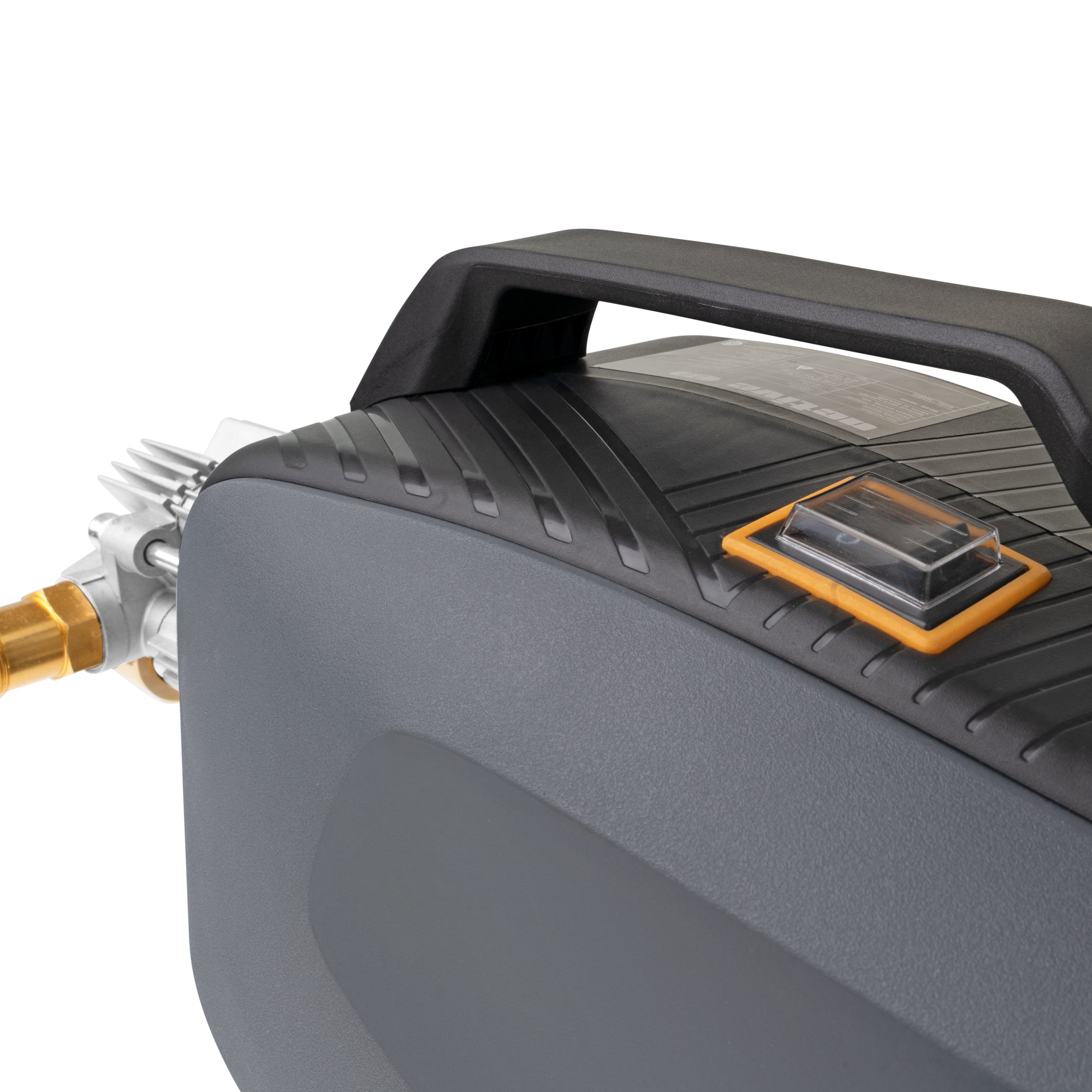

Remove the yellow power switch seat and use a small screwdriver to release the old switch from its casing.

Step 7: Install the New Power Switch

Place the new power switch into the casing as demonstrated in the video or manual.

Step 8: Reconnect the Terminals

Reinstall the 4 wire terminals into their appropriate slots on the new power switch.

Step 9: Close the Power Switch Casing

Ensure that the power switch casing and wires are properly seated and close the casing securely.

Step 10: Reinstall the Power Switch

Place the power switch back into its position and use the 2 screws to fasten it securely.

Step 11: Reassemble the Pump and Motor

Place the pump and motor body back into the casing, ensuring the microswitch support and power cord support are correctly adjusted.

Step 12: Reattach the Tips Holder

Position the tips holder back in its place before continuing to the final assembly step.

Step 13: Replace the Plastic Cover

Reattach the plastic cover over the motor and secure it in place.

Step 14: Secure the Casing

Use the size X Phillips screwdriver to reinstall the 9 screws and fasten the casing in place.

Conclusion

You’ve successfully replaced the power switch on your Active 2.0 pressure washer pump. This should resolve the issue of your unit not powering on. If you need further assistance, feel free to reach out to us at support@activeproducts.com.
