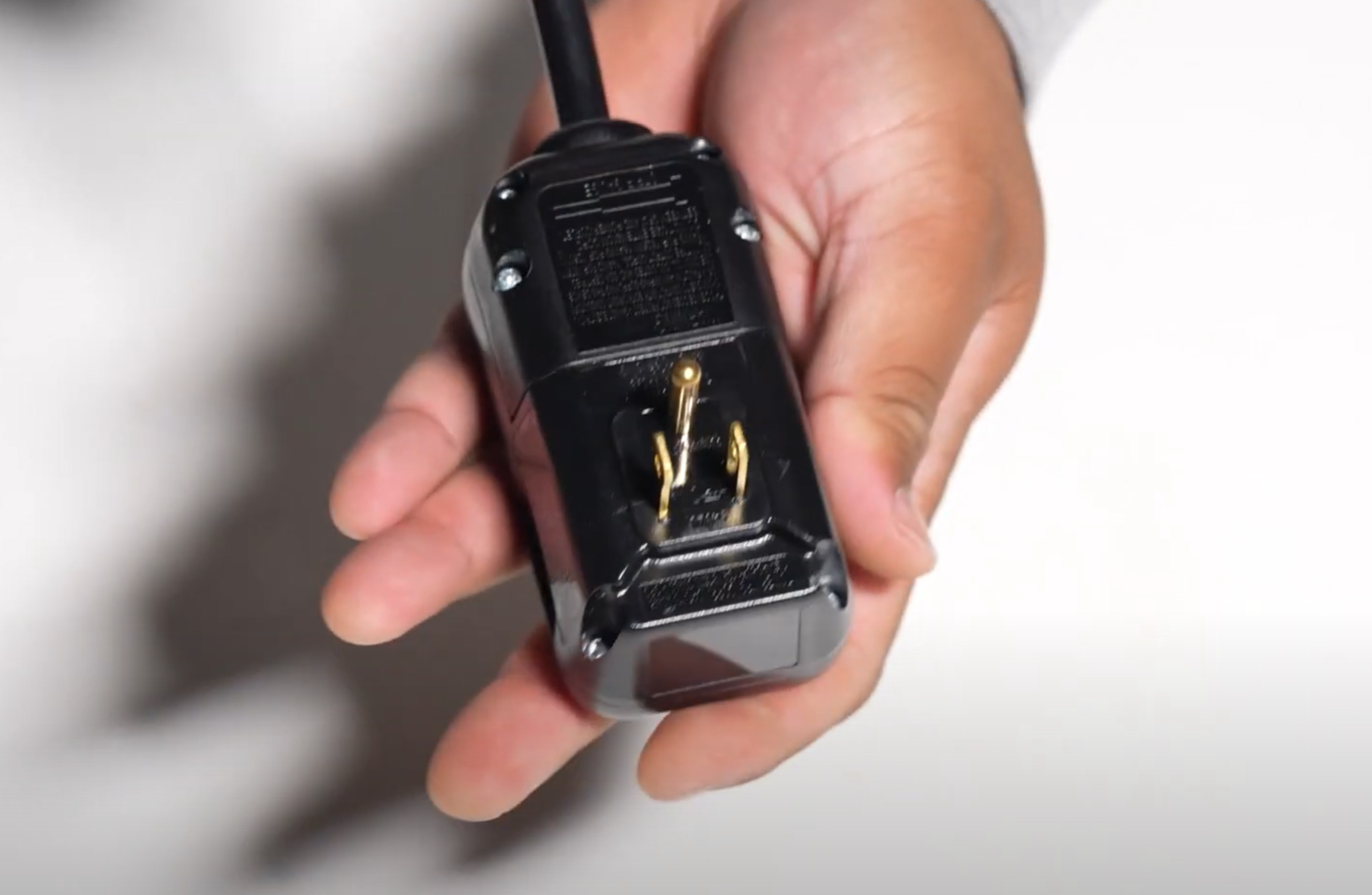

Replacing the GFCI plug on an Active 2.3 pressure washer can be crucial for maintaining both functionality and safety. GFCI plugs act as a ground, especially important in tools involving water and electricity. In this guide, we’ll go through the entire process from start to finish, so you can confidently repair or replace your GFCI plug as needed.

Step-by-Step Guide to Replacing the GFCI Plug

Before you start, power on your pressure washer and make sure you press the TEST and RESET buttons on the GFCI plug. This action verifies whether the GFCI plug is working as it should.

Common GFCI Issues

If your GFCI plug is defective, you may notice:

  • The light on the plug doesn’t turn on when switched on.
  • The light is on, but you hear a buzzing sound or feel heat coming from the receptacle.

If you encounter either of these problems, it’s time to replace the GFCI plug. Here’s how to do it:

Tools Needed

For this repair, you’ll only need a Phillips screwdriver.

Step-by-Step Instructions

  1. Remove the Casing: Use the Phillips screwdriver to remove four screws from the plastic casing. Set the casing aside.
  2. Release the Wires: Inside, remove the four internal screws to disconnect the cable and wires from the GFCI.
  3. Install the New GFCI: Take your new GFCI plug and position the cable receptacles at the correct terminal points. Ensure they’re snug, and use two screws to secure them.
  4. Secure the Cables: Keep the cables in their correct positions, then secure them with the remaining two internal screws.
  5. Reattach the Casing: Place the plastic cover back on and use the four external screws to secure it.

And that’s it! You’ve successfully replaced the GFCI plug on your Active 2.3 pressure washer. Make sure to test the GFCI again by pressing the TEST and RESET buttons to confirm a successful installation.

Conclusion

By following these steps, you’ll keep your Active 2.3 pressure washer running safely. Regular maintenance like this can help avoid costly repairs and ensure the unit operates at peak performance. For more troubleshooting and DIY repair guides, check back regularly!
