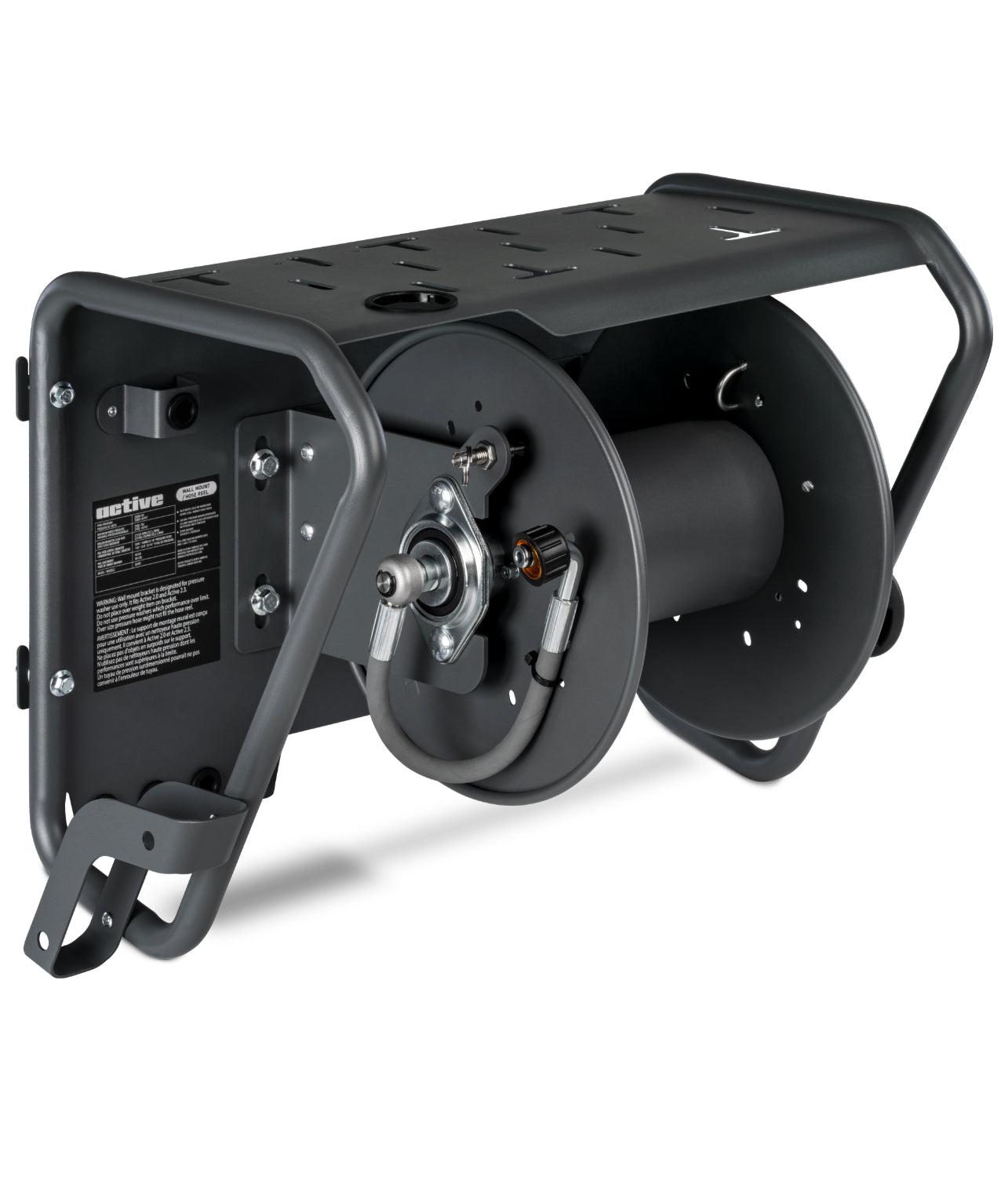

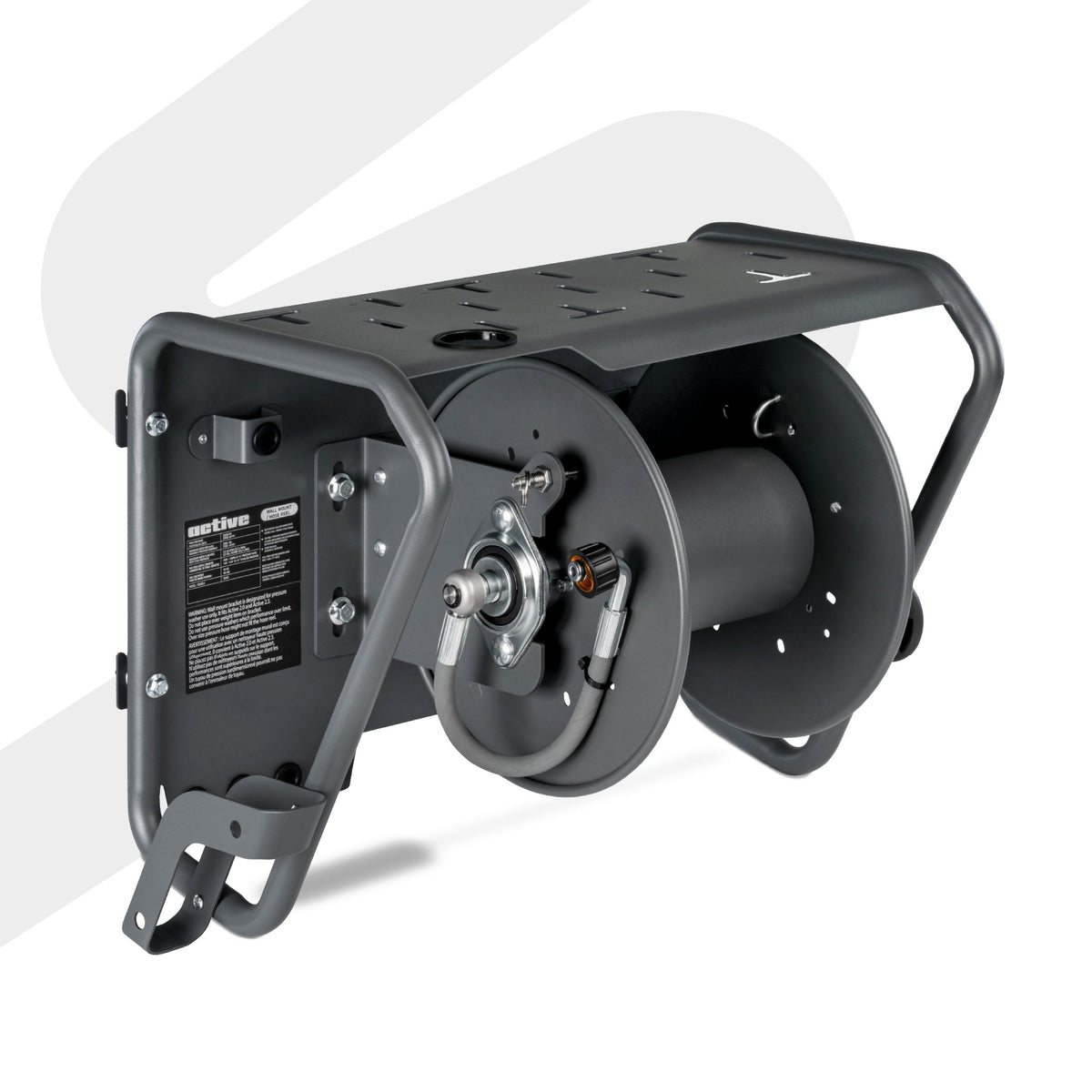

Active™ Hose Reel Wall Mount System
Enjoy Free Shipping! - Shipping's on us!
30-Day Hassle-Free Return
Expert Support Every Step of the Way.
Regular price
$379.99 USD
Couldn't load pickup availability
Product details
- SKU SH01
- Barcode 841308105444
Helpful Documents
- Product Manual Download
Do you have questions about this product?

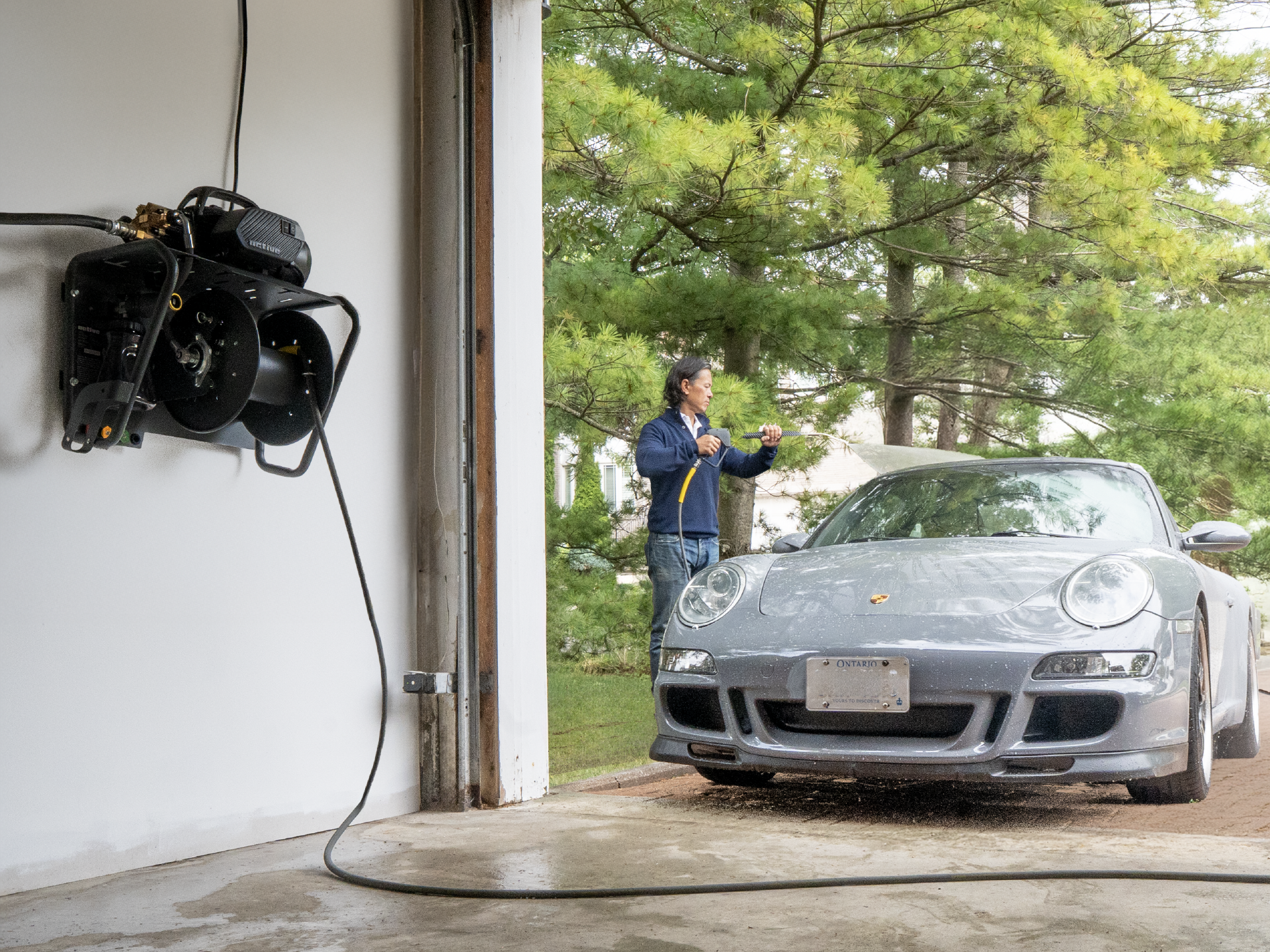

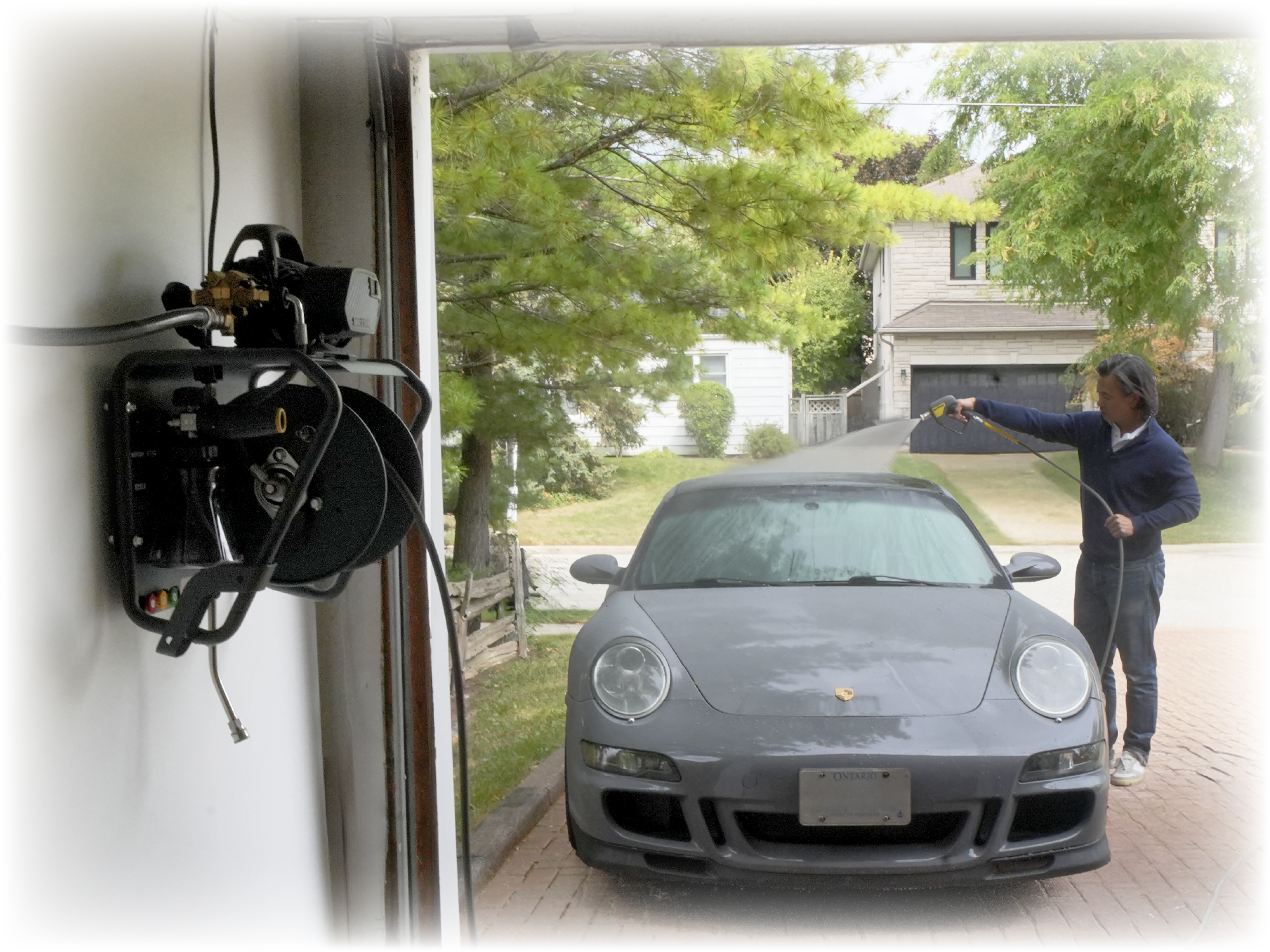

The Active pressure washer wall mount and hose reel combo is meant to seamlessly integrate with the customers product experience when using Active pressure washers and accessories. Not only is it suited for our product program but can be a suitable upgrade kit for all pressure washer users when it comes to enhancing their car wash experience.

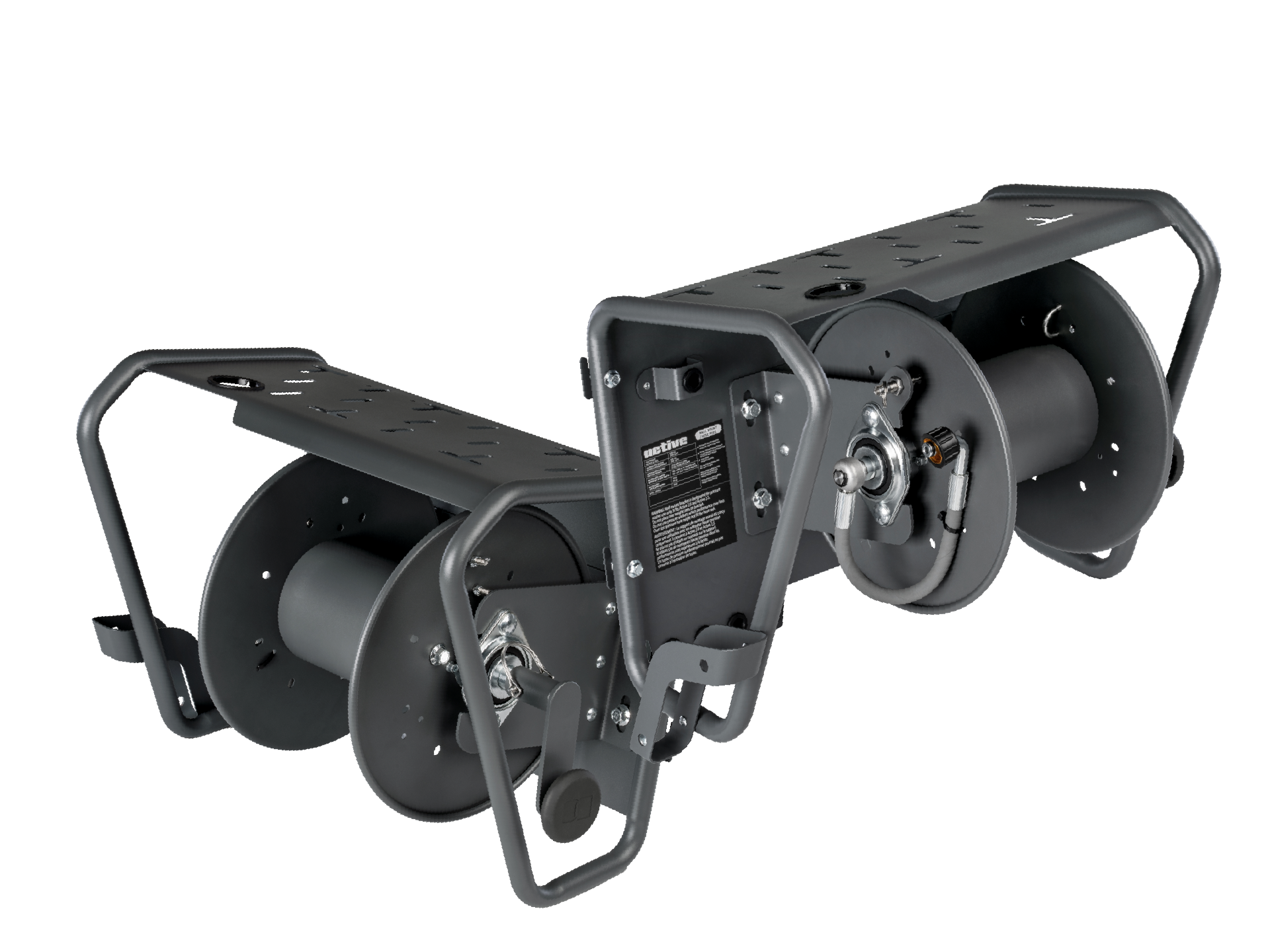

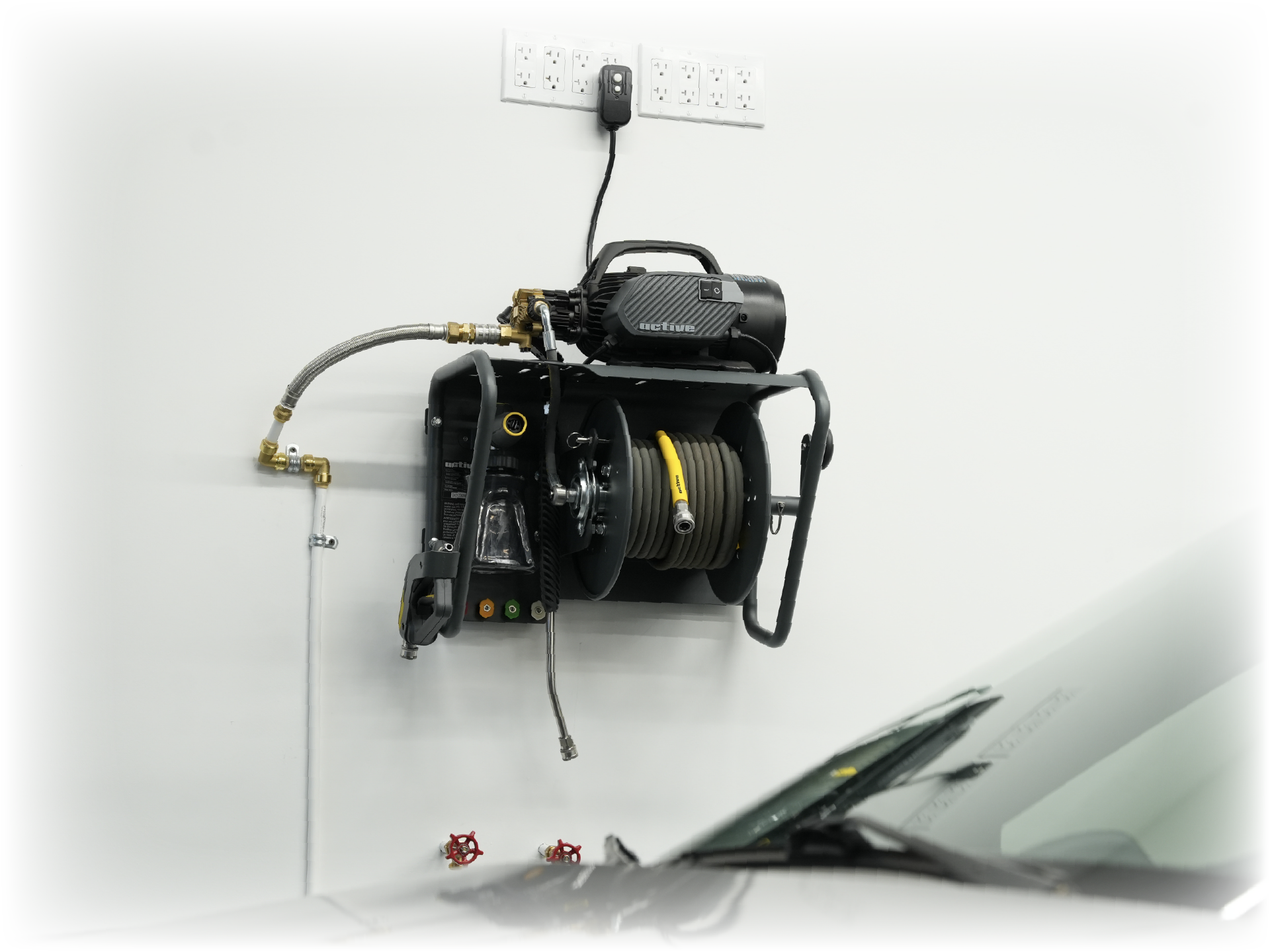

- Systemic car wash at home

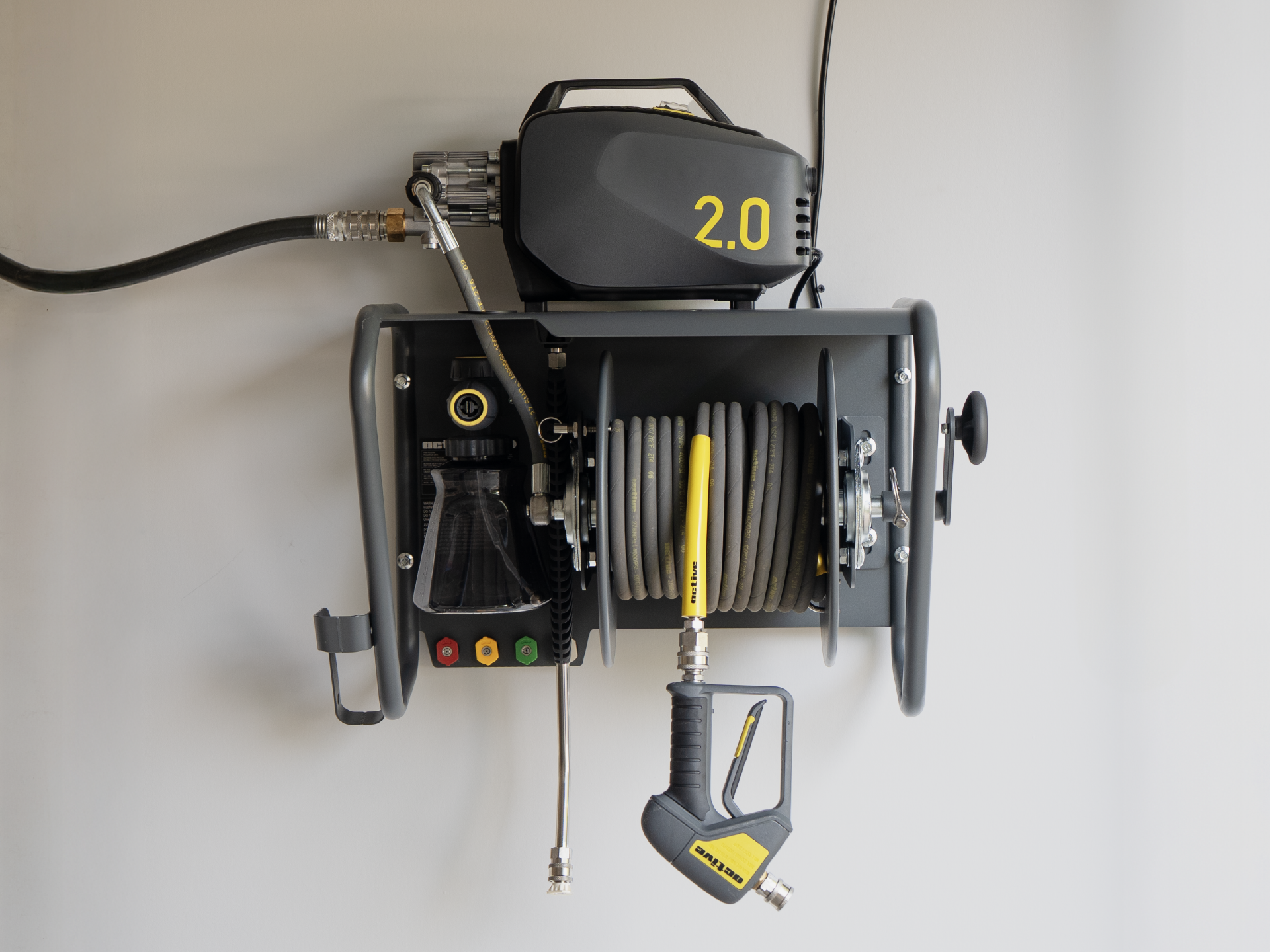

The Active hose reel wall mount system enables you to have a decluttered setup all in one place, allowing you use and put away your pressure washer system with ease.

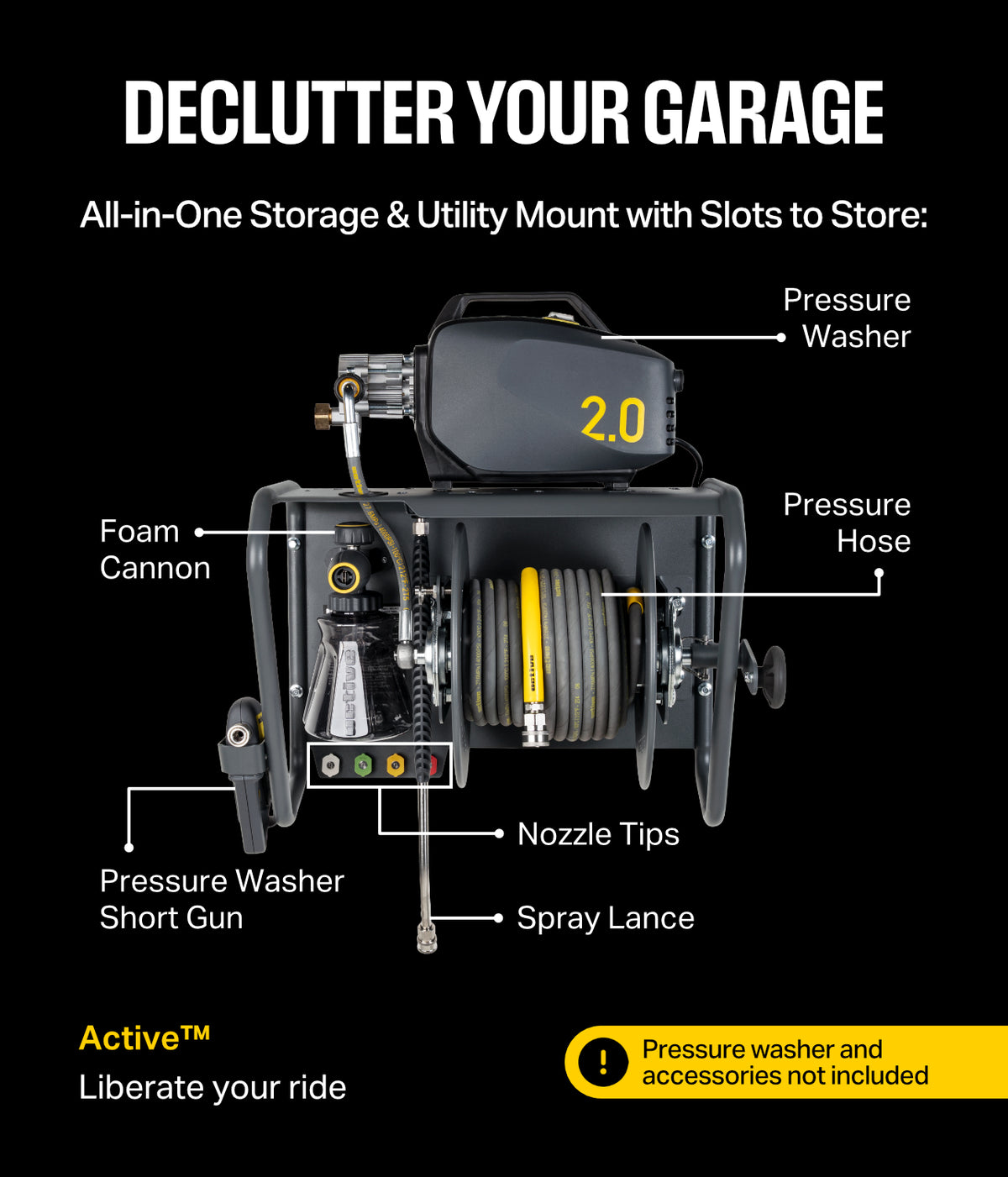

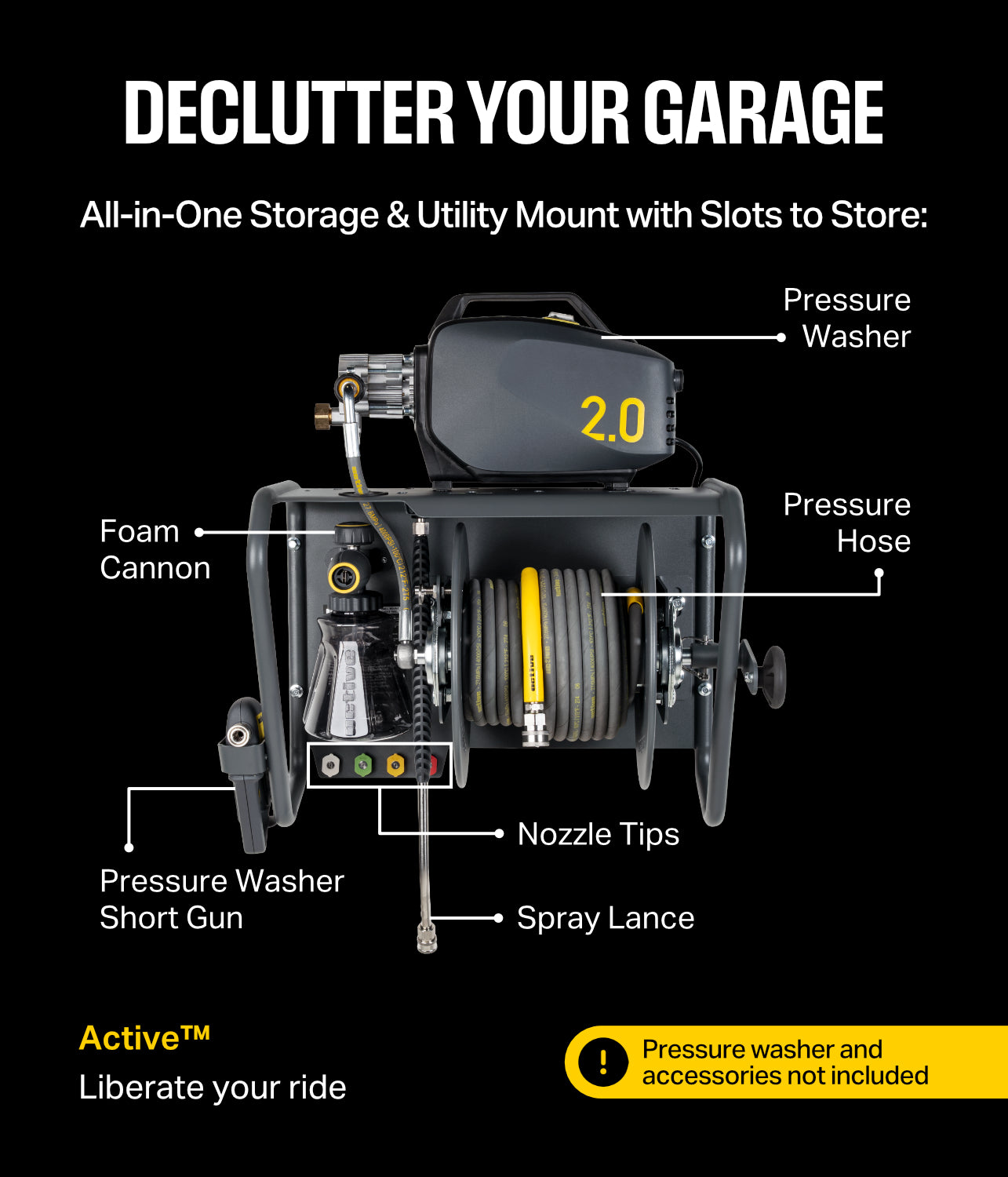

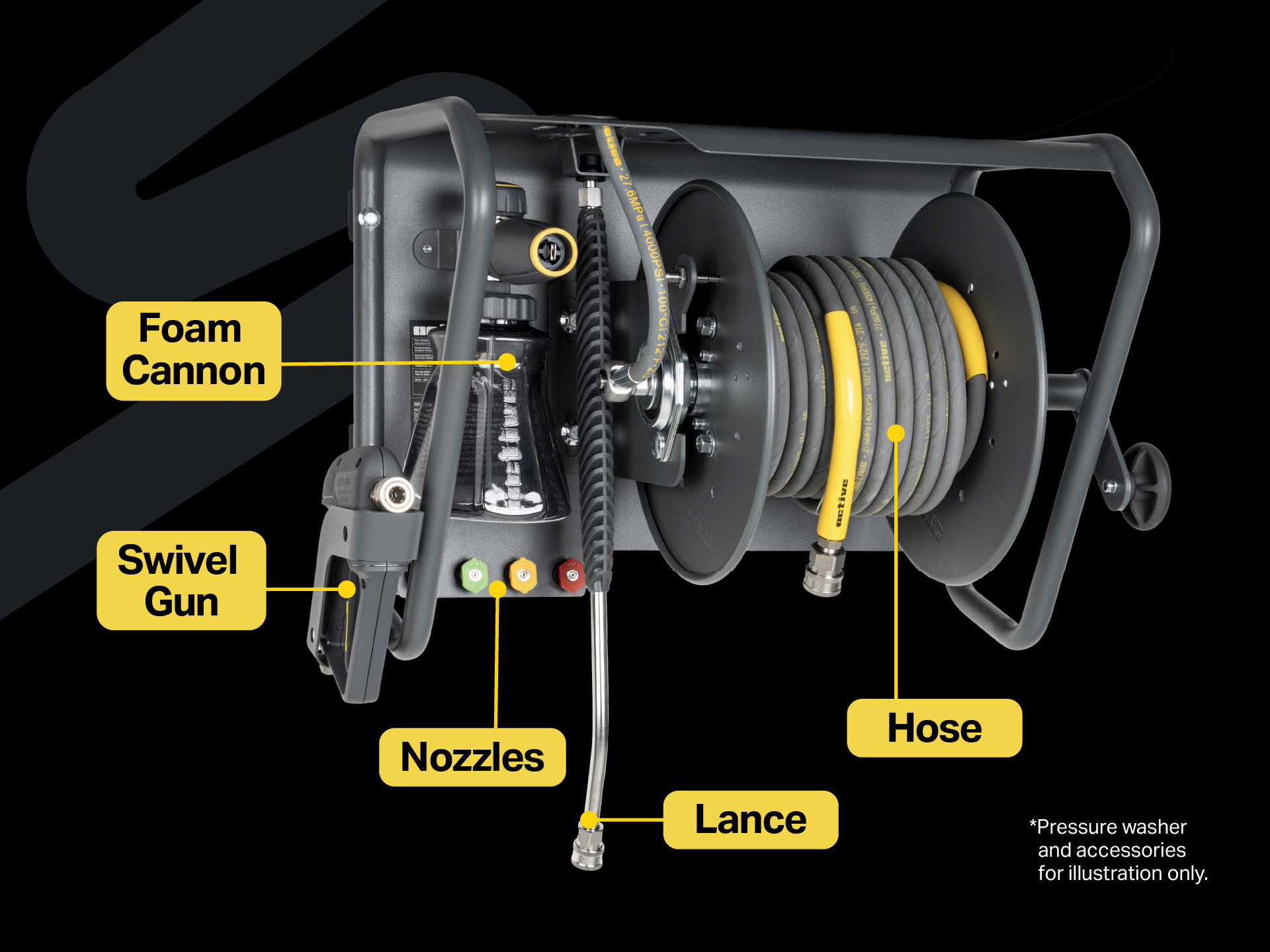

- Organized hose and accessory management

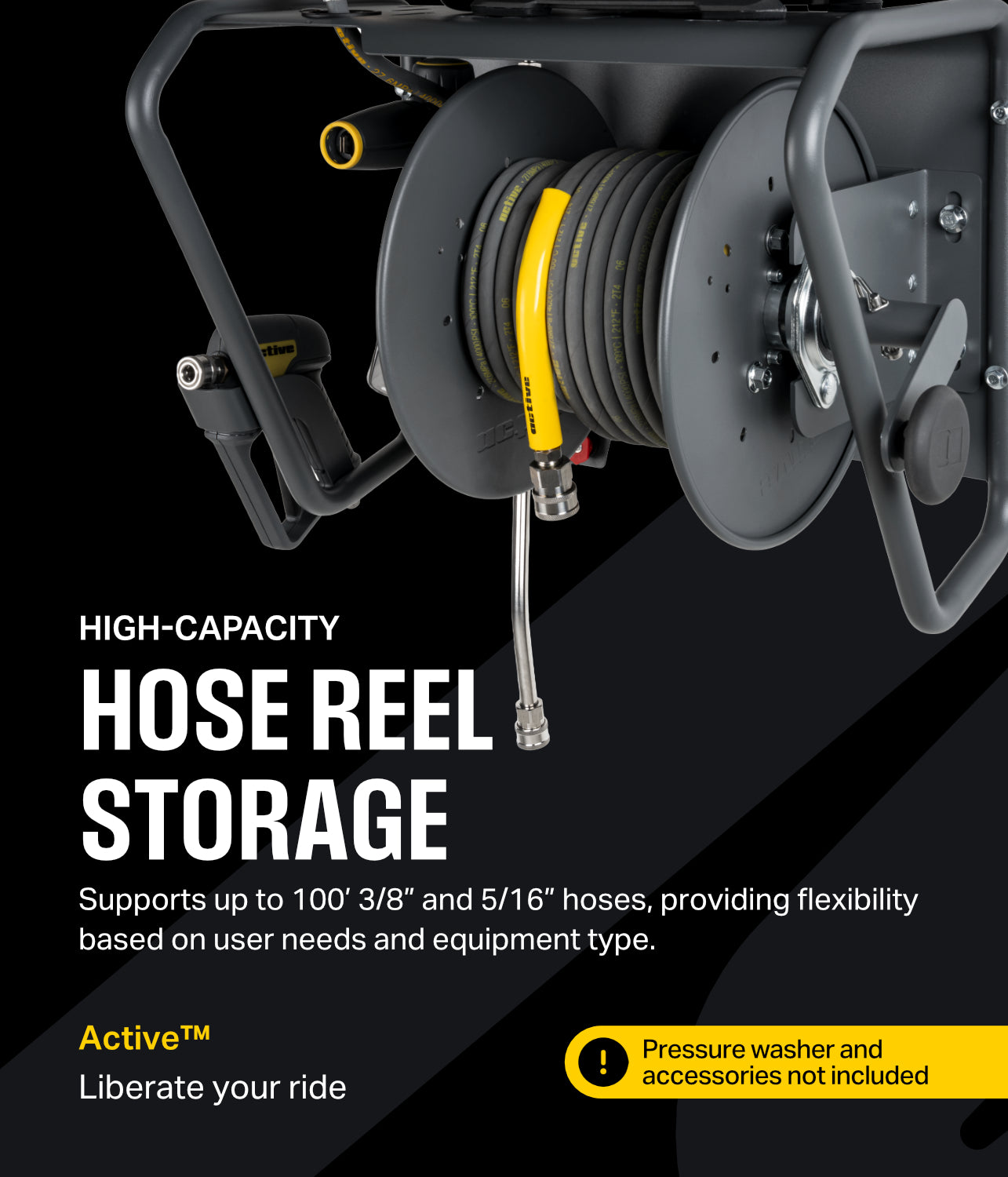

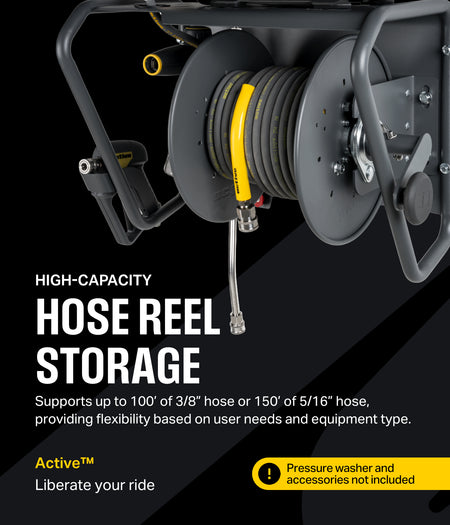

A storage slot for all accessories from your nozzles, foam cannon, gun and lance. The included reel also accommodates up to 100’ for 3/8 and 5/16 hoses

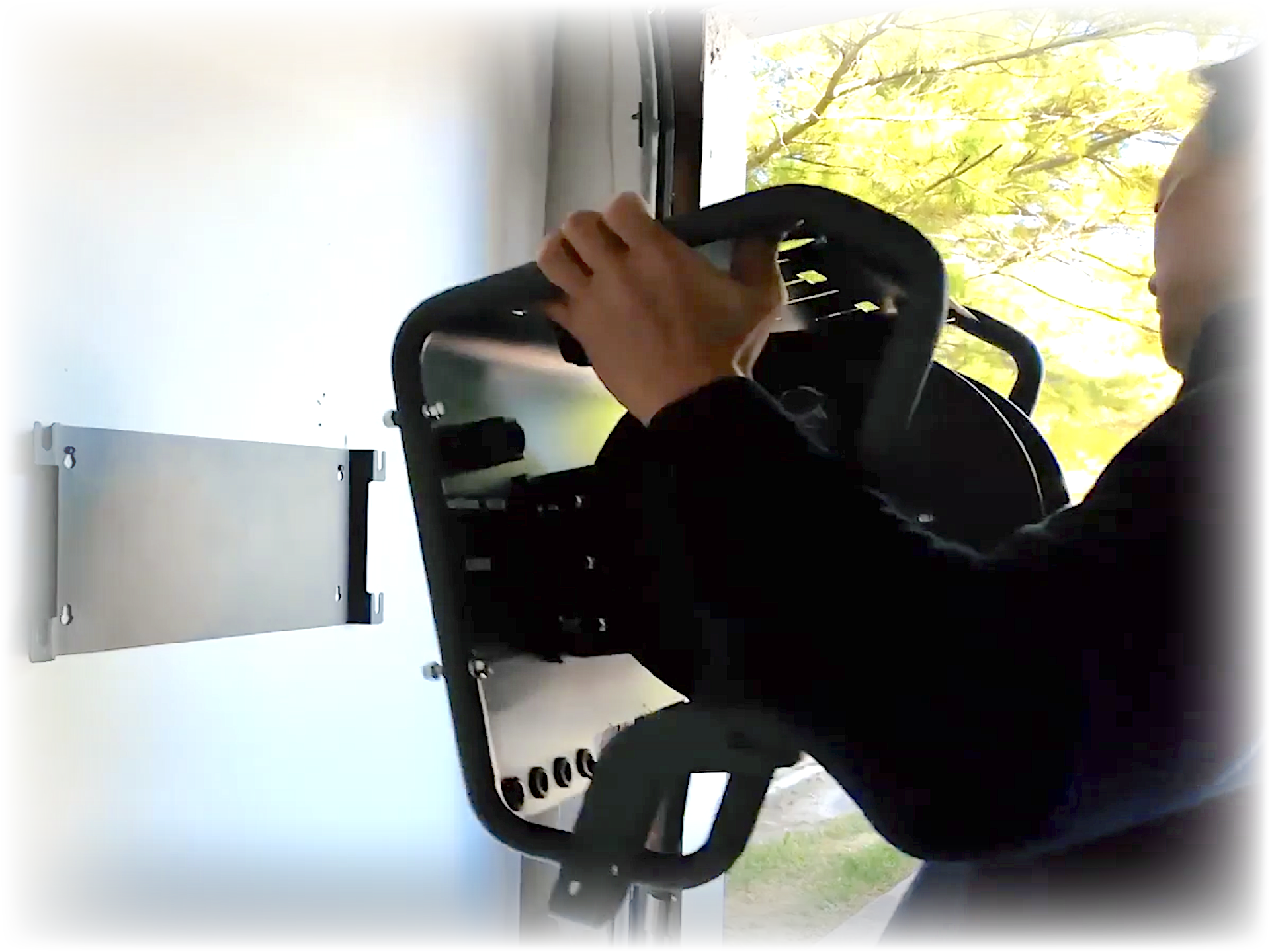

- Safe and easy to mount

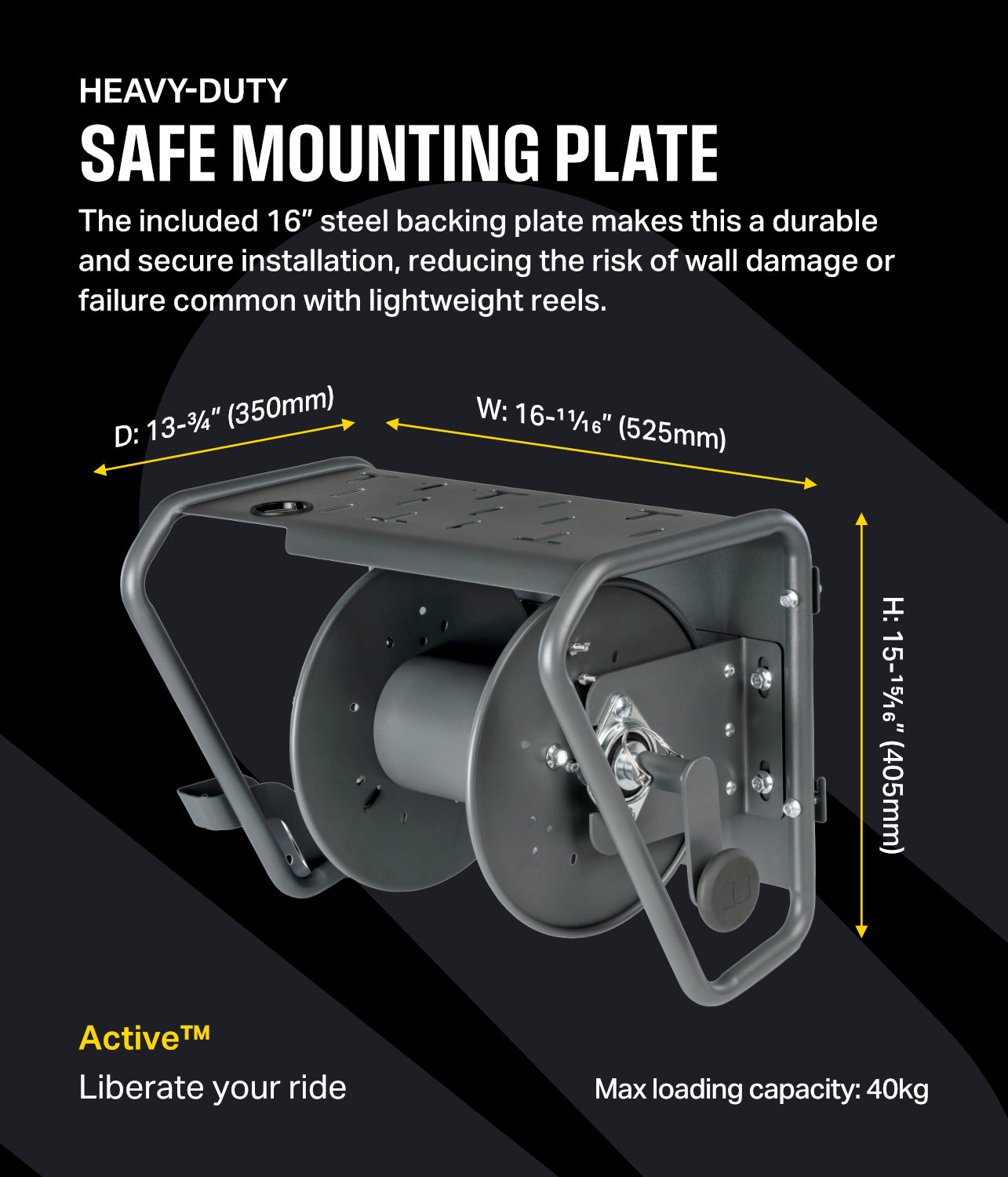

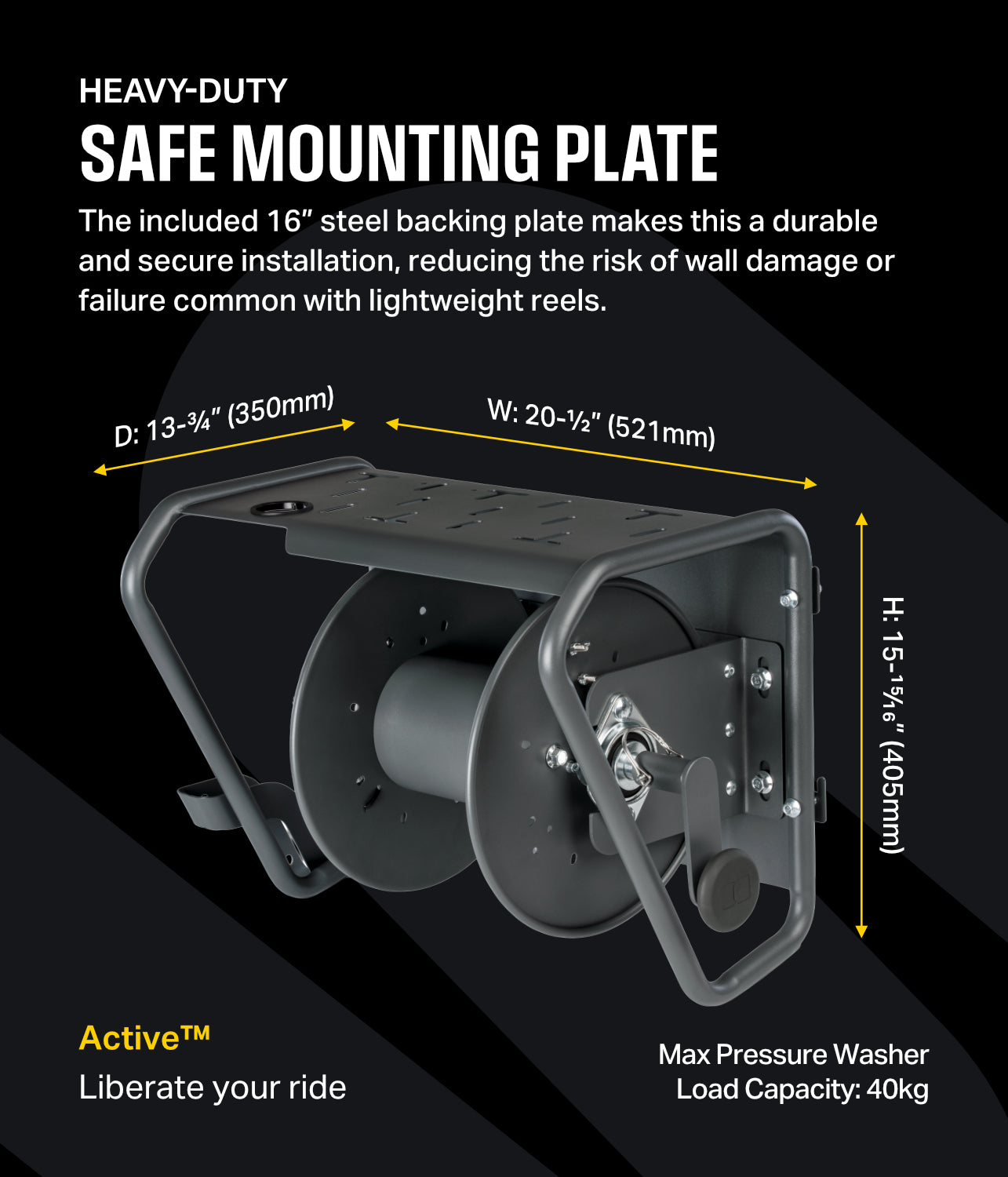

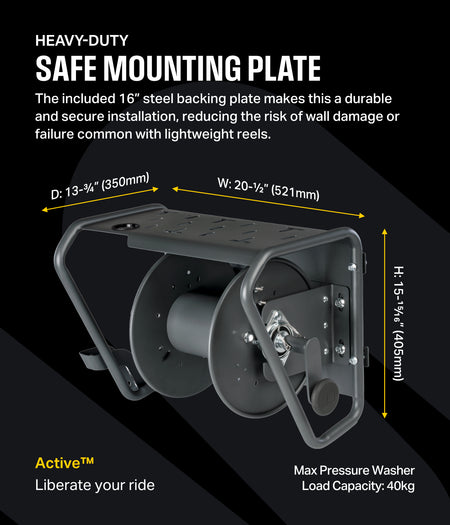

The provided backing plate comes with 16” stud spacing and easy latch system which allows you to safely mount the solution to your garage whether on studs or concrete. (Refer user manual for steps)

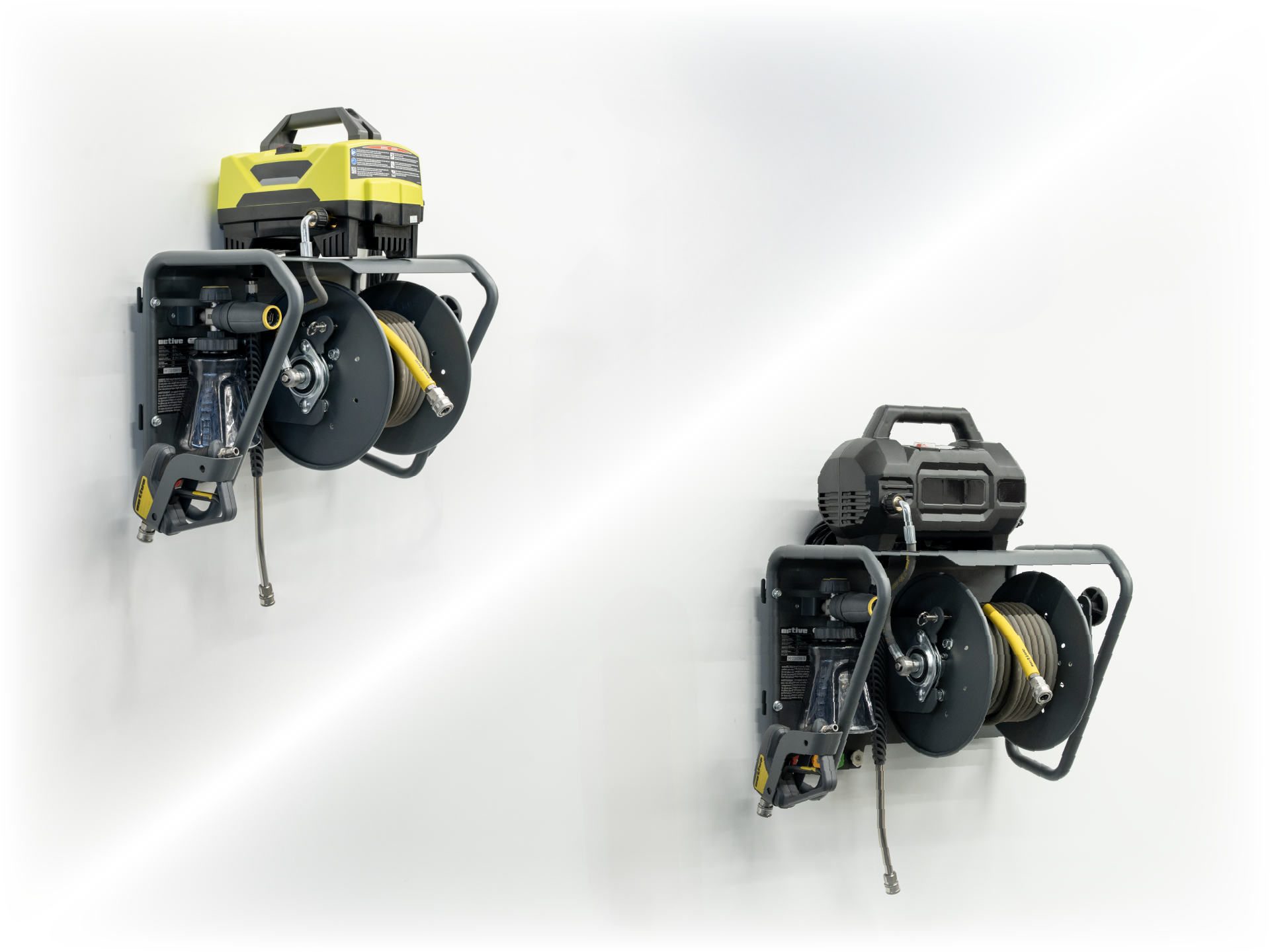

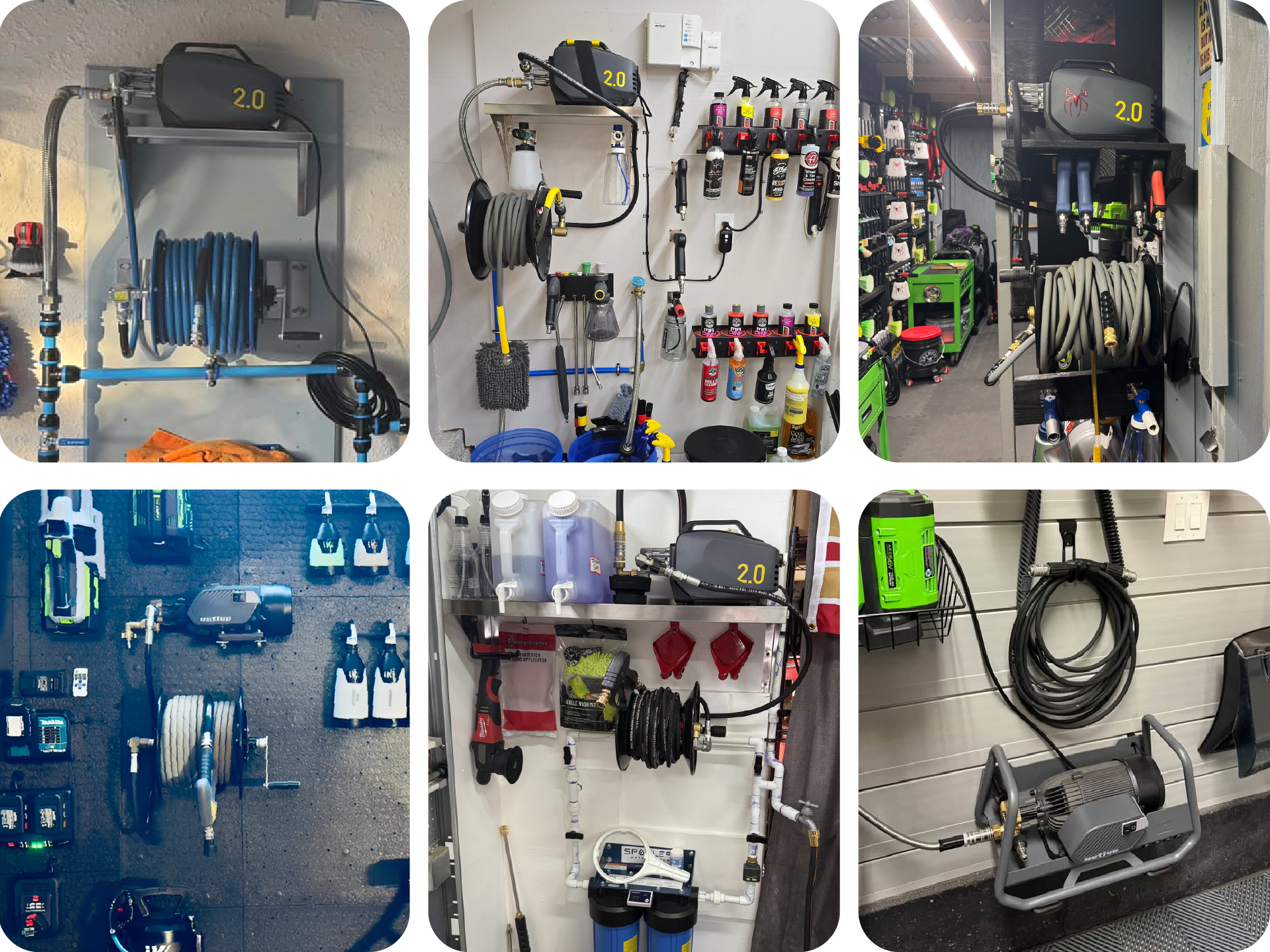

- Compatible with many pressure washers and accessories

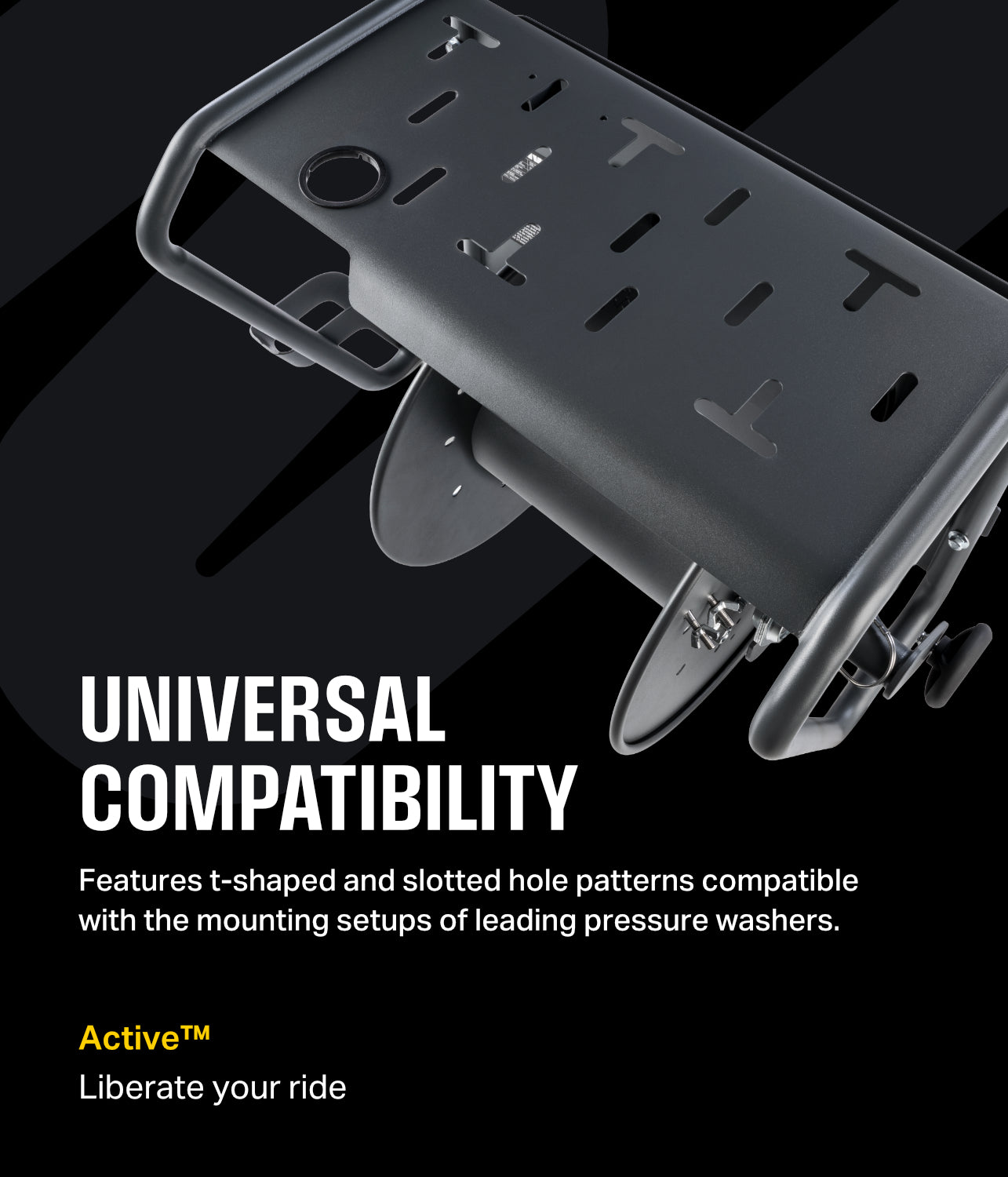

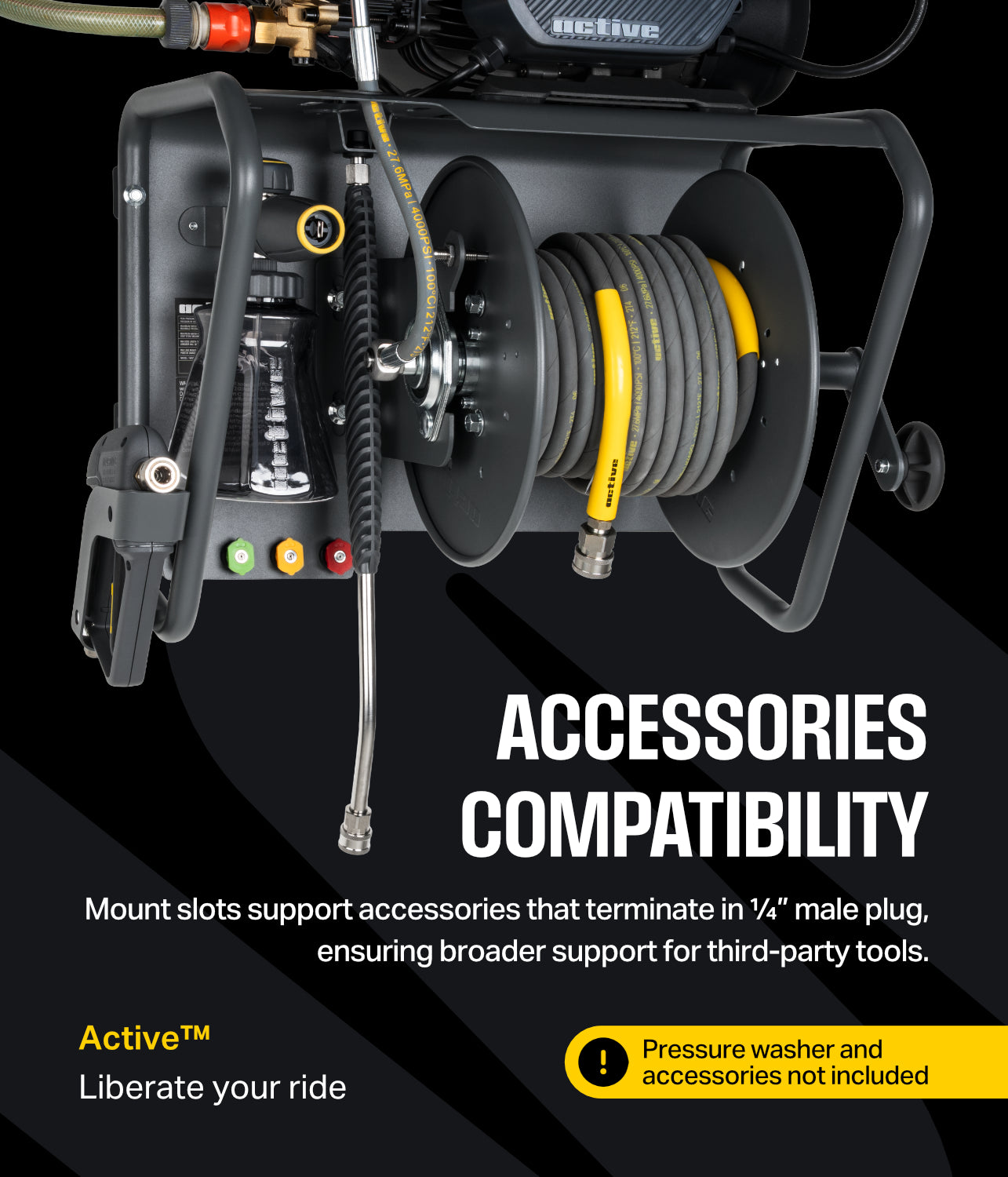

Since the accessory holders come with ¼” rubber grommet plugs, it has universal product storage capabilities. And for the pressure washer there is a slot system that should allow you to mount any solution for your garage.

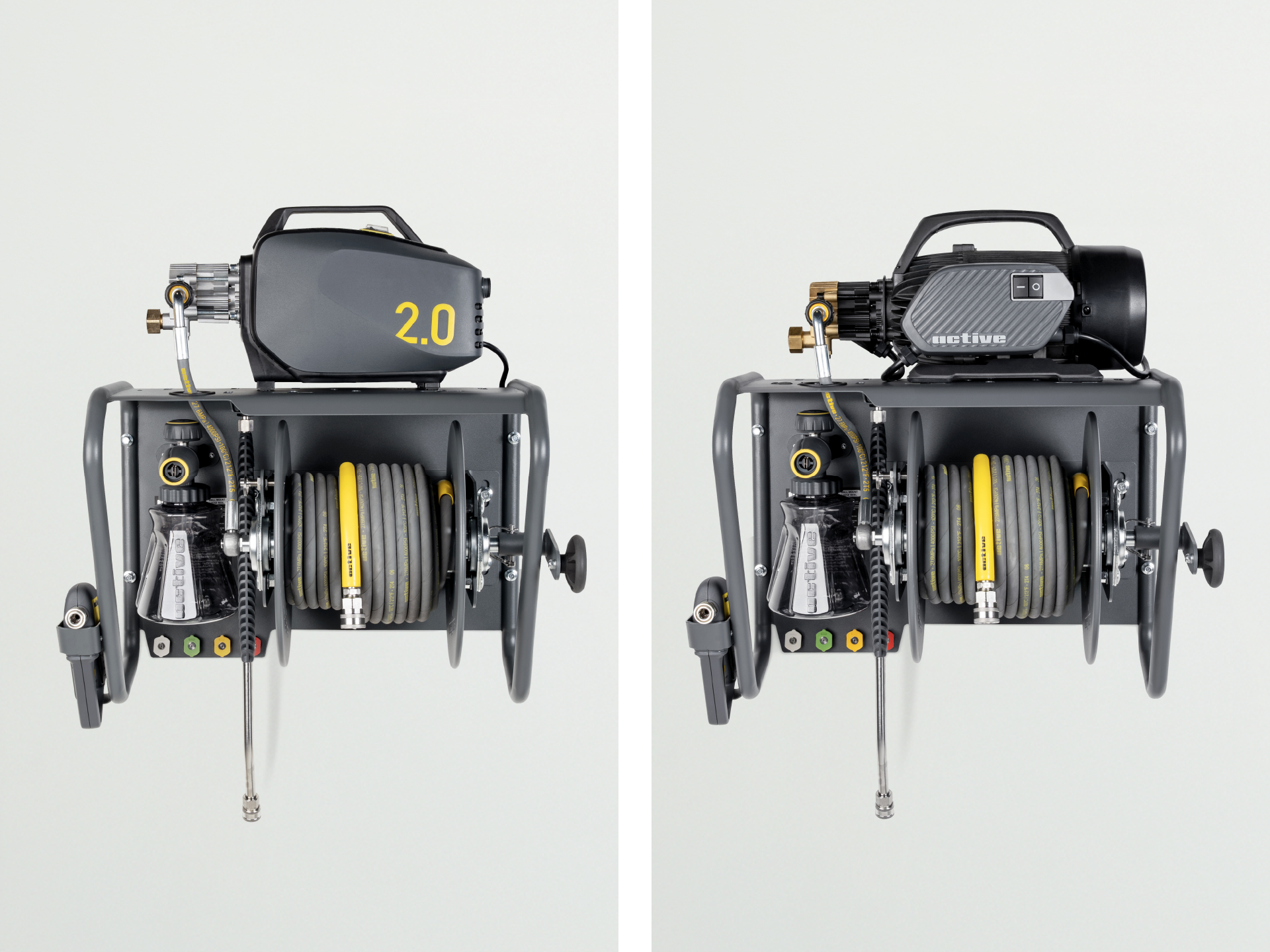

- Optimized for Active systems

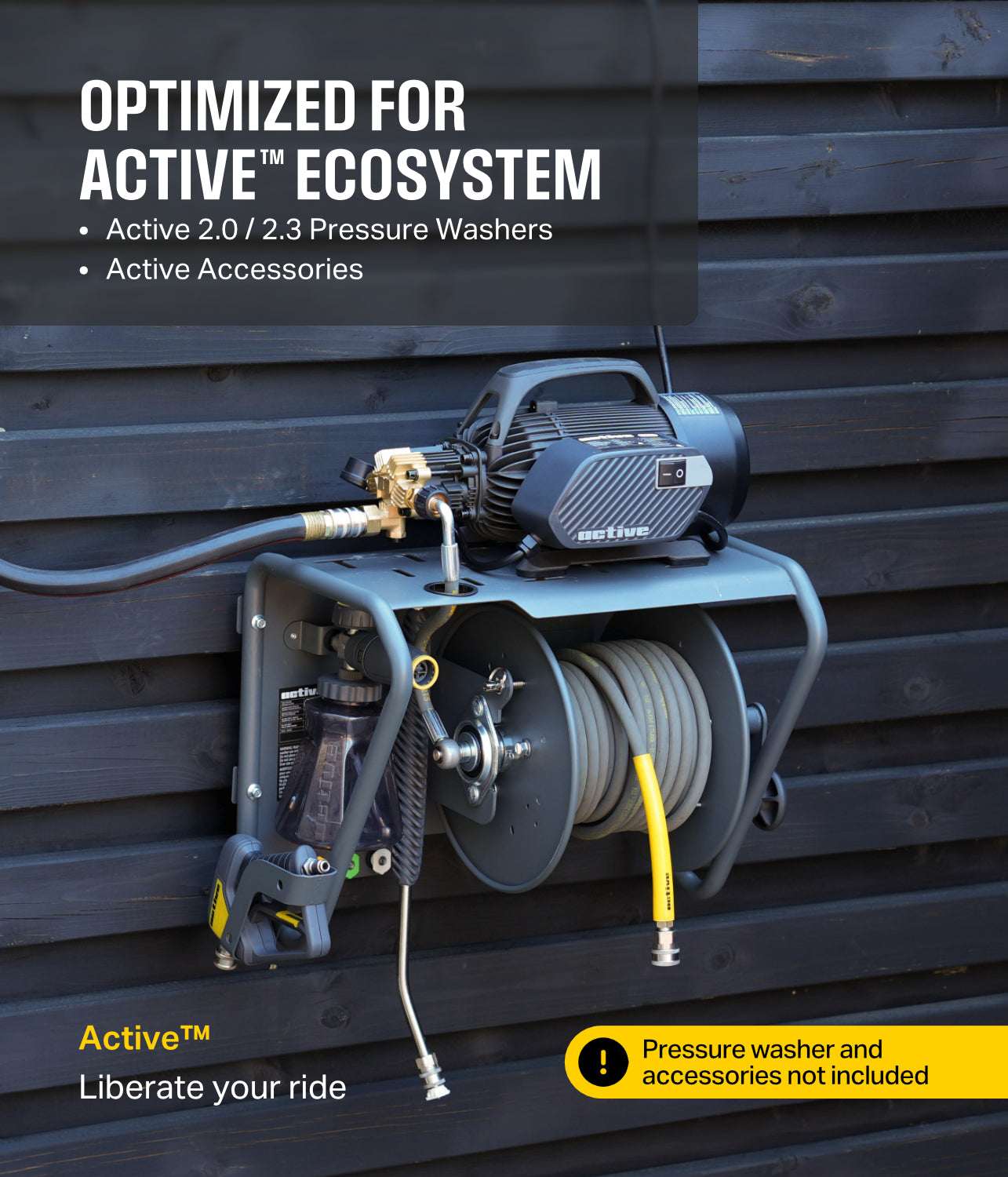

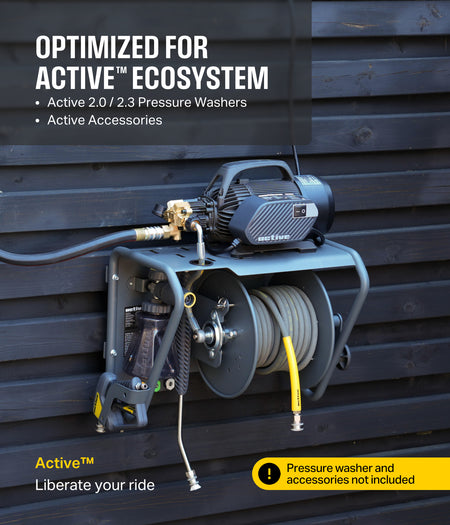

Despite universal adaptability, the system is optimized for used with Active 2.0 and 2.3 pressure washing solution and the Active accessory solution.
- Product Goal
The Active hose reel wall mount solution an all-in-one garage solution that keeps pressure washer setups organized, accessible, and clutter-free. Designed for safe, straightforward mounting and universal compatibility, it offers smart storage for hoses and accessories while being perfectly optimized for the Active lineup.
- Warranty
The Active hose reel wall mount solution comes with a 2-year end user warranty
Frequently Asked Questions
What’s the max rating for the hose reel and wallmount solution?
+
The hose reel valves has a max rating of 3000 peak pressure, 2100 PSI operating pressure and 3.5 GPM max flow rate, within limit for most industrial automotive pressure washers.
What if I encounter leaks in the hose reel wall mount solution?
+
The hose reel is completely rebuildable. Active carries all parts from O-rings to valves which can be replaced once worn out.
What is included in the hose reel wall mount solution?
+
The hose reel wall mount solution comes with a backing plate with 16” stud spacings, the main frame with hose reel for 100’ hose. And a jumper hose to connect to pressure washer.
What pressure washers can be mounted on the hose reel wall mount solution?
+
Most automotive pressure washers can be mounted on the plate with a max weight rating of 88lbs for the pressure washer. If the included jumper hose does not meet the presusre washer outlet, we do carry optional jumper hoses to fit your requirement.
Hose reel
- Inlet fitting: 3/8” QC female coupler

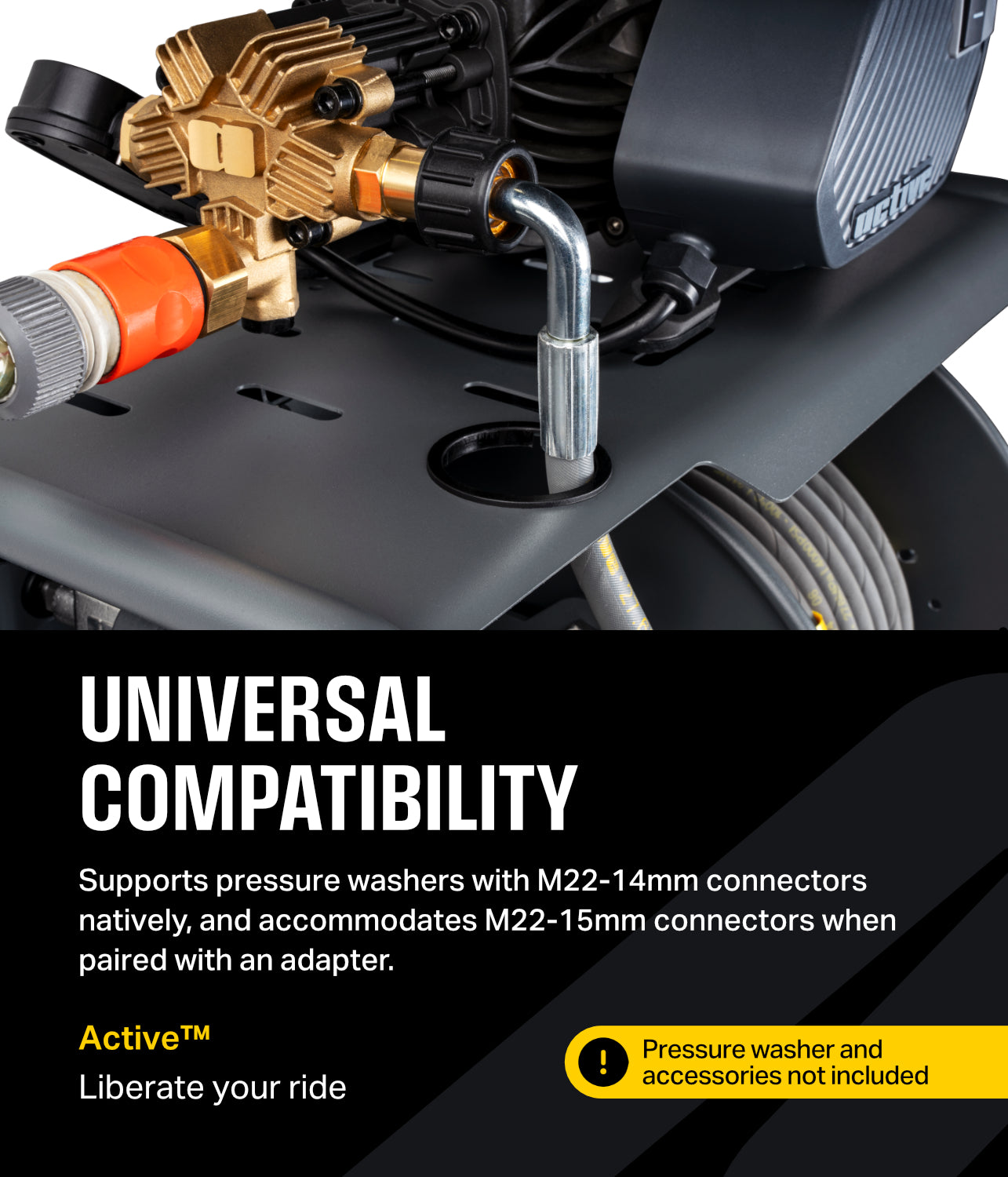

- Outlet fitting: M22x1.5-14
- Extension hose pre-installed
- Reel rotation lock: release lock pin before turning the reel
- Hand crank: customer need install hand crank and lock by pin
- Hose clamp: customer needs to make adjustment to secure hose
- Stainless steel (304) reel valve

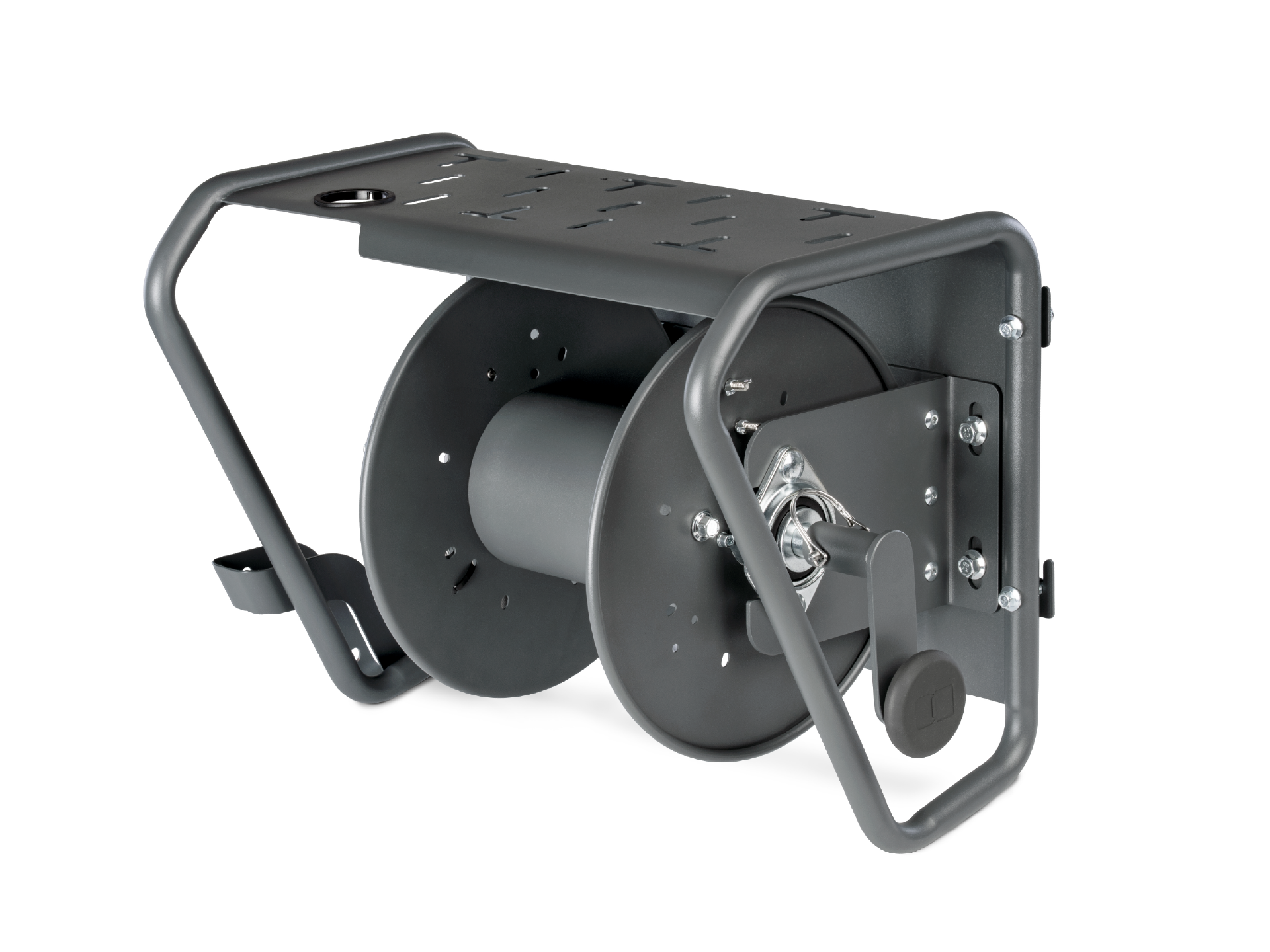

Metal frame
- Hose reel is pre-installed on frame
- Customer installation is required for wall mount mode
- Customer installation required for gun holder and fasten by screw
- Customer adjustment is required for hose clip
Tip rest seat
- 4 pcs rubber grommets pre-attached on rear wall
Foam cannon rest seat
- 1pc rubber grommet pre-attached on mounting bracket
Wand rest seat
- 1pc rubber grommet pre-attached on mounting bracket
Extension hose
- 5/16” rubber hose, 340mm in length
- M22x1.5-14 connector for pressure washer
- Female fitting for jumper hose male fitting (SST304)
Hardware
- 4pcs 6x30 mm screws to fasten mounting plate on the wall
- 4pcs M8x 20mm bolts to secure wall mount to mounting plate
- 2pcs M5x14 bolt to secure gun holder on frame
Accessories
- Hand crank with lock pin
- Mounting plate
- Gun holder
- Hardware kit
